Produktkategorie
HG-JR3534B
Produktnummer: MEUM261459
EAN-Nummer: 5705379122968
EAN-Nummer: 5705379122968
HG-JR3534B

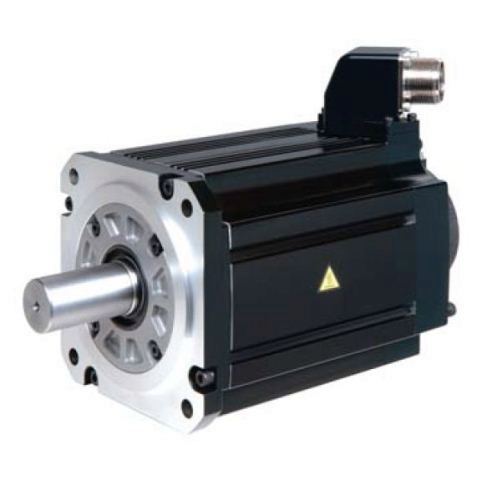

10 STANDARD ITEM Servomotor HG Series, Power 3.5 kW; Torque 10.5 Nm, Max. 32 Nm, Brake, 400V
Download specifications
| Name | Value |
|---|---|
| BasicData | |
| MaterialDescription | HG-JR3534B |
| ProductHierachy | IAK30223 |
| ProductSubgroup | HG-JR |
| ExternalMaterialGroup | 10 STANDARD ITEM |
| CommodityCode | 85015220 |
| OriginCountry | JP |
| ABCIndicator | A |
| PriceListTextEN | Servomotor HG Series, Power 3.5 kW; Torque 10.5 Nm, Max. 32 Nm, Brake, 400V |
| PriceListTextDE | Servomotor HG Serie, Leistung 3,5 kW; Drehm. 10,5 Nm, max. 32 Nm, Bremse, 400V |
| DualUseList | |
| GrossWeight | 15.34 |
| WeightUnit | KG |
| Volume | 20.808 |
| VolumeUnit | CDM |
| BrutLength | 51.0 |
| BrutWidth | 17.0 |
| BrutHeight | 24.0 |
| DimensionUnit | CM |
| DimensionData | |
| NetWidth | 130 |
| NetDepth | 306,5 |
| NetHeight | 179,8 |
| NetWeight | 15 |
| EnvironmentData | |
| ReachLimitExceeded | NO |
| ReachSubstanceCASNumber | N/A |
| DangerousGoodsRegulations | NO |
| RoHSCompliance | NO |
| ProductSpecificationCharacteristics | |
| ClassGroup | FA-SERVO |
| Class | 100100501 |
| ClassDescription | FA-Servo-Motion: Servo Motor |
| MaterialCharacteristics | |
| Series | MELSERVO-J4 |
| Type | HG-JR |
| Power Supply (V) | 400 |
| Current Type | AC |
| Rated Capacity (kW) | 3,5 |
| Rated Torque (Nm) | 10,5 |
| Maximum Torque (Nm) | 44,6 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 6000 |
| Inertia (kg*cm2) | 15,4 |
| Brake | YES |
| Shaft Type | STRAIGHT SHAFT |
| Encoder Type | ABSOLUTE/INCREMENTAL |
| Encoder Resolution (p/rev) | 4194304 |
| Protection Class | IP67 |
