K50APFF100GREQP
Produktnummer: K50APFF100GREQP
EAN-Nummer: 5705378664162
EAN-Nummer: 5705378664162

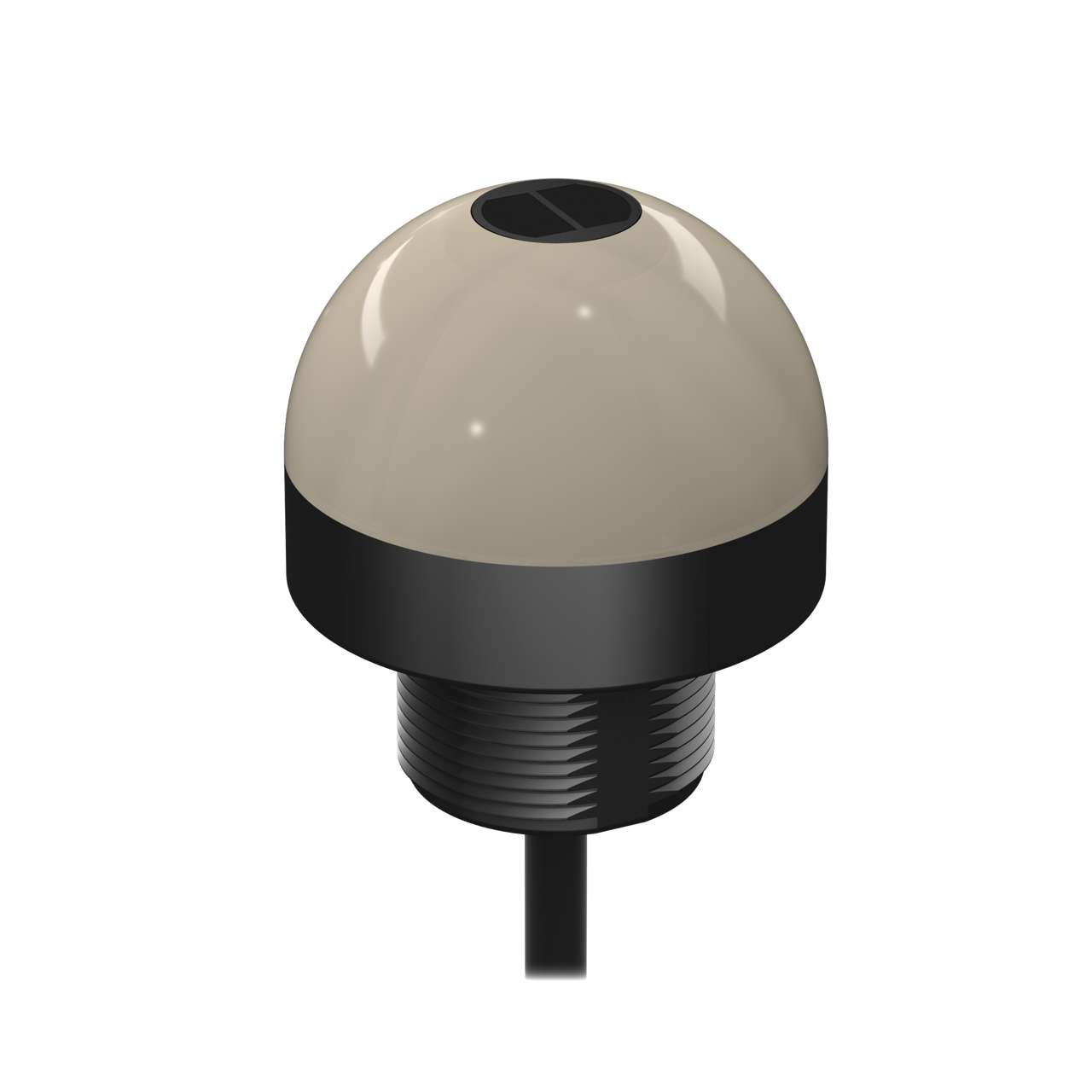

K50 E-Series EZ-LIGHT: 2-Color Fixed-Field Sensor; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67; Range: 100 mm; Input: PNP (NO); Colors: Green Red; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
Download specifications
| Name | Value |
|---|---|
| Power | DC |
| Cable Length (m) | 0.15 |
| Display | No |
| IP Rating | IP67, IP69K |
| Sensing Mode (General) | Fixed Field |
| Housing Style | Base Mount - Dome Window |
| Primary Housing Material | Polycarbonate |
| Actuation | Yes |
| Activation Function | Optical |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 2 |
| Product Size (mm) | 50 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Connection | Pigtail QD |
| Quick Disconnect Type | M12 |
| Color Option 2 | Red |
| Max Current Color (mA) | 75 |
| Mis-Pick Light | Red |
| Pick-to-Light Function | E |
| Number of Input Pins/Conductors | 4 |
| Operation | Normally Open |
| Supply Voltage | 12-30 V dc |
| Output Type | PNP |
| Input Type | PNP |
| I/O Block Compatible | Yes |
| Max Output Response Time (ms) | 3 |
| Maximum Sensing Distance (mm) | 100 |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 56.8 |
| Number of Beams | 1 |
| Environmental Rating | IP67; IP69K |
| NEMA Type and UL Type Rating | UL 4X, 13 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Primary Housing Color | Black |
| Button Operation | Momentary |
| Primary Window Material | Polycarbonate Diffused |
| Feature: Washdown Rated | Yes |
| Feature: Audible | No |
| Multi-Color Device | Single Color On |
| Feature: Quick Disconnect | Yes |
| Job Light | Green |
| Origin | MX |
| Order Quantity | 1 Each |
| Weight | .35 LB |
| HTS Code (US) | 8531.20.0040 |
| Country of Origin | MX |
| Lead Time (Business Days, updated weekly) | 38 |
