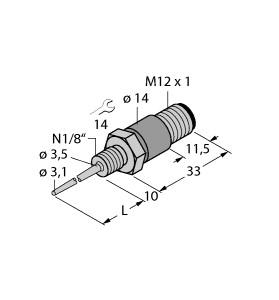

TP-103A-N1/8-H1141-L013
Produktnummer:
Temperature Detection, Probe, Pt‐100 probe acc. to DIN EN 60751, Vibration and shock-resistant, Connectable to TS, TTM, IM34, BL20, BL67, 4-wire connection technology, Max. temperature connector: 120°C
Download specifications
| Name | Value |
|---|---|
| Temperature measuring range | -50, 120 Degrees celsius |
| Process temperature | - MV Degrees celsius |
| Diameter measuring insert | - MV Millimeter |
| Length measuring insert | 13 Millimeter |
| Outer diameter thermowell | 3 Millimeter |
| Outer diameter thermowell top | 3 Millimeter |
| Length thermowell | - MV Millimeter |
| Built-in length thermowell | 13 Millimeter |
| Type of connection head | - MV |
| Analogue output 0 mA ... 20 mA | - MV |
| Analogue output 4 mA ... 20 mA | - MV |
| Analogue output 0 V ... 2 V | - MV |
| Analogue output 0 V ... 5 V | - MV |
| Analogue output 0 V ... 10 V | - MV |
| Analogue output 2 V ... 10 V | - MV |
| Ambient temperature | -40, 120 Degrees celsius |
| Weight | - MV Kilogram |
| Customs tarif #: | 90262020000 |
| FEATURES: | Temperature sensor |
| UNIT: | Piece |
| GTIN | 4047101355901 |
