LEDRLA290XG6-XQ
Produktnummer: 14482BA
EAN-Nummer: 0662488144821
EAN-Nummer: 0662488144821

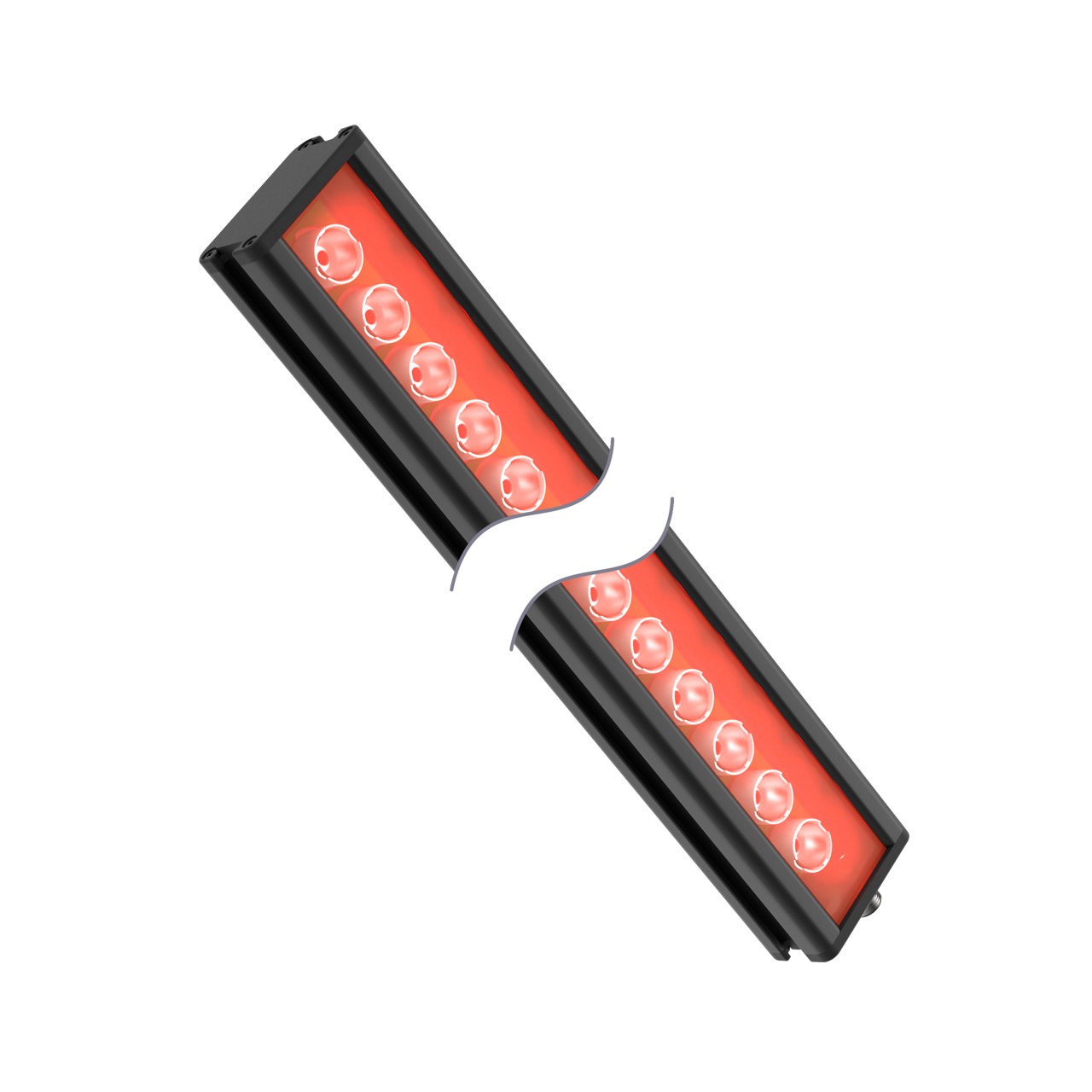

Vision Light - 290 mm Linear Array - IP50; 12 High Intensity Red LEDs - 24 V dc; Clear Glass Window; Requires Cable MQDC20-xxx
Download specifications
| Name | Value |
|---|---|
| Power | DC |
| Housing Style | Linear Strip |
| Device Type | Bar Light |
| Primary Housing Material | Anodized Aluminum |
| Color | Red |
| Window Material | Glass |
| Connection Type | Integral QD |
| QD Type/Cable Length | M12; requires mating cordset |
| Number of Input Pins/Conductors | 5 |
| Color Technology | Standard LED |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 1000 |
| Supply Voltage | 24 V DC |
| Physical Dimensions (LxWxH or DxH mm) | 332.6 x 59.4 x 32.6 |
| High Temperature (up to 100° C) | 50 |
| Lens Focusing Angle (°)/Field of View | 6.5 |
| Feature: Quick Disconnect | Yes |
| Origin | US |
| Order Quantity | 1 Each |
| Weight | 1.9 LB |
| HTS Code (US) | 9405.42.0000 |
| Country of Origin | US |
| Lead Time (Business Days, updated weekly) | 20 |
