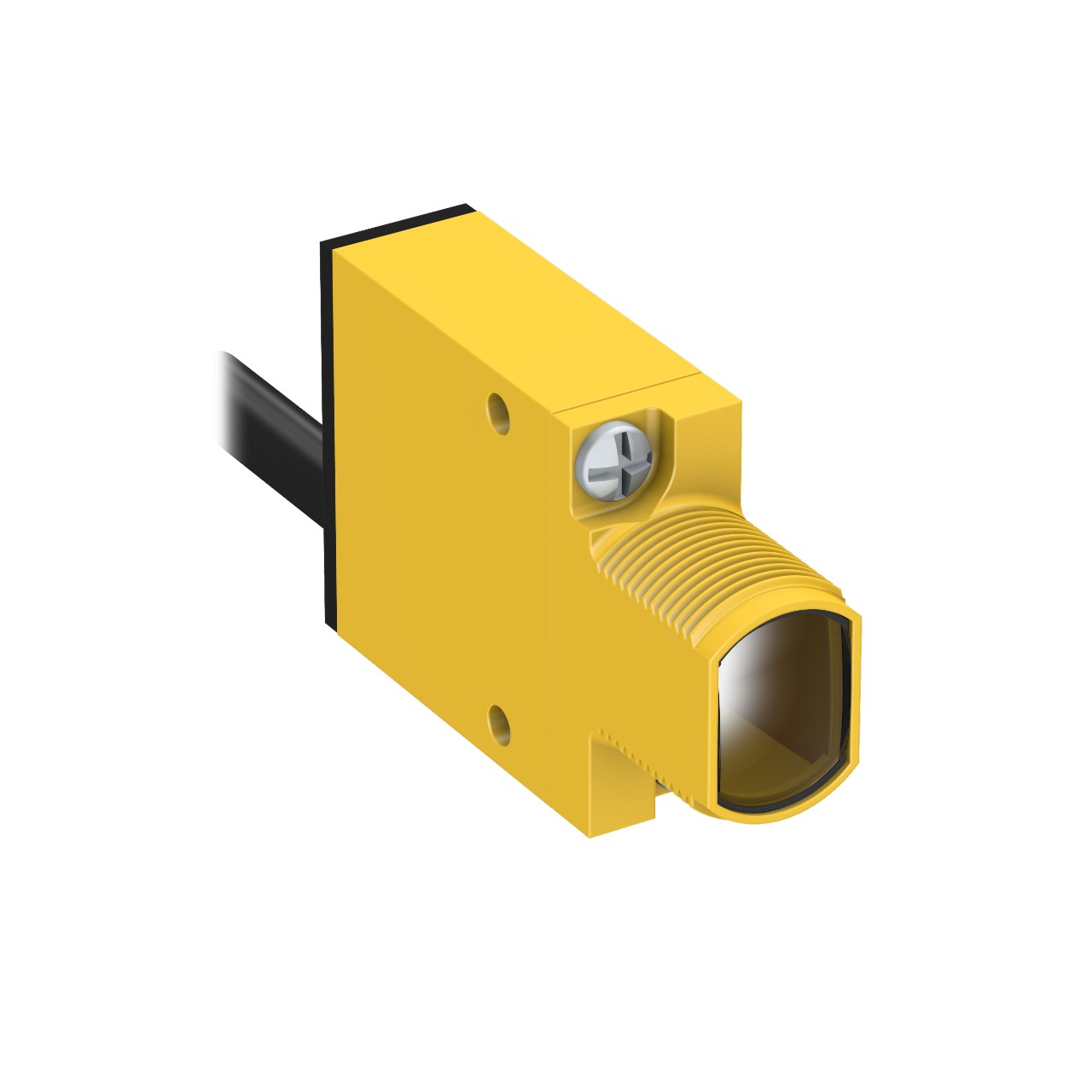

BANNER MINI-BEAM SENDER
Product number: SM31EL
EAN nummer: 5705378163344
EAN nummer: 5705378163344
MINI-BEAM: Emitter; Range: 30 m; Input: 10-30V dc; Output: Not applicable - No outputs; 2 m (6.5 ft) cable
Long description
Download specifikationer
| Name | Value |
|---|---|
| IP Rating | IP67 |
| Cable Length (m) | 2 |
| Sensing Beam | Infrared LED |
| Power | DC |
| Sensing Mode (General) | Opposed |
| Sensing Mode (Detailed) | Emitter |
| Housing Style | Rectangular w/M18 Mount |
| Primary Housing Material | Thermoplastic |
| Max Sensing Distance (mm) | 30000 |
| Power Supply/Supply Voltage | 10-30 V dc |
| Connection | Cable |
| Operation | N/A |
| Min Op. Temp. (°C) | -20 |
| Max Op. Temp. (°C) | 70 |
| Repeatability (µs) | 140 |
| Number of Pins | 2 |
| NEMA Rating | NEMA 1, 2, 3, 3S, 4, 4X, 6, 12 |
| Max Op. Relative Humidity [%] | 90% @ 50°C |
| Lens Material | Acrylic |
| Adjustments | Potentiometer |
| Barrel Diameter (mm) | 18 |
| Indicator | LEDs |
| Opposed Mode Emitter/Receiver | Emitter |
| Feature: Encapsulated | Yes |
| Feature: Audible | No |
| Origin | US |
| Order Quantity | 1 Each |
| Weight | .313 LB |
| HTS Code (US) | 8541.41.0000 |
| Country of Origin | US |
| Lead Time (Business Days, updated weekly) | 20 |
