Q45BB6LLPQ6
Product number: Q45BB6LLPQ6
EAN nummer: 5705378628430
EAN nummer: 5705378628430

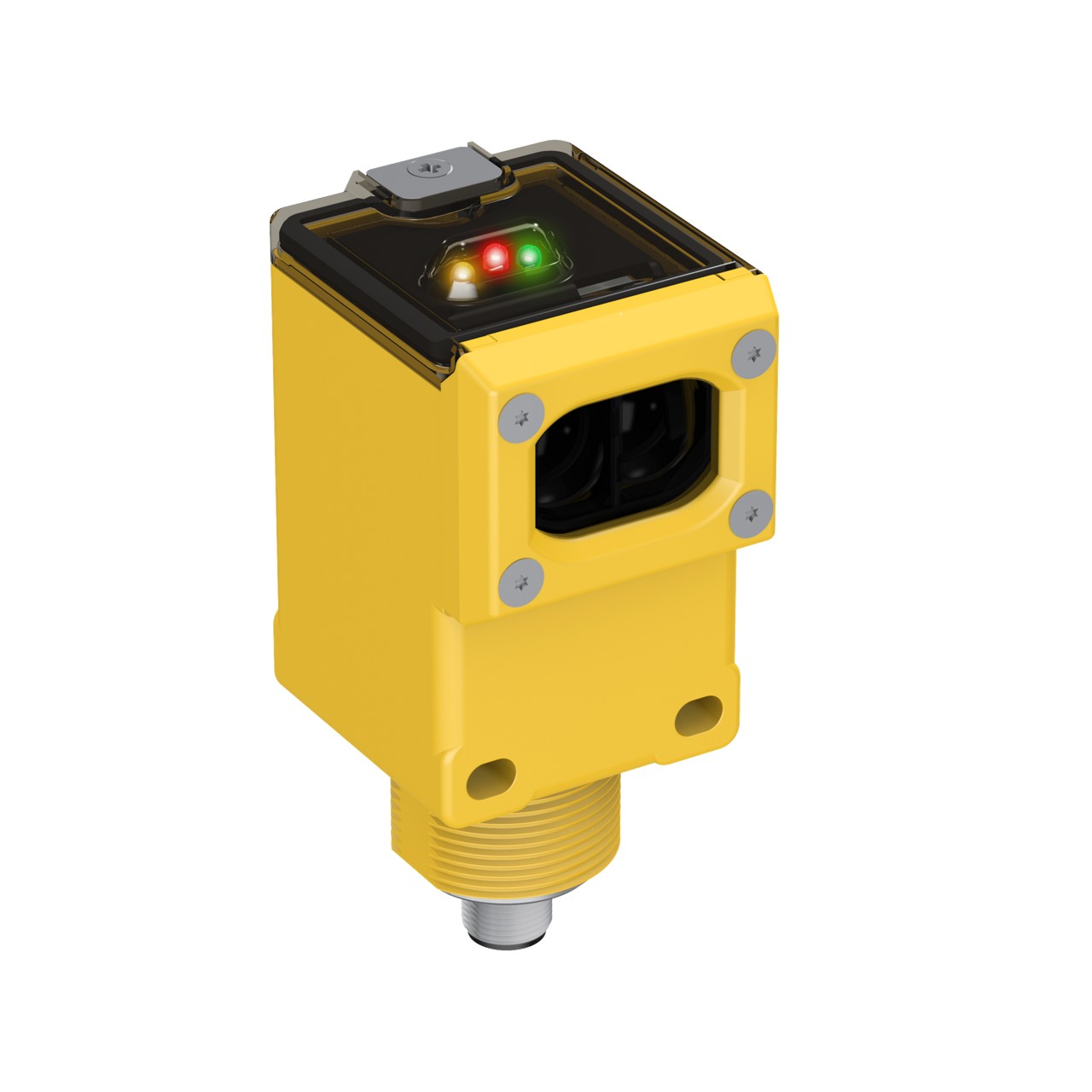

Q45 Series: Laser Polarized Retro; Range: 0.6 - 40 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 5-pin M12 Integral QD
Download specifikationer
| Name | Value |
|---|---|
| IP Rating | IP67 |
| Sensing Beam | Visible Red Laser |
| Power | DC |
| Sensing Mode (General) | Retroreflective |
| Sensing Mode (Detailed) | Polarized |
| Housing Style | Rectangular |
| Primary Housing Material | Thermoplastic |
| Laser Classification | Class 2 |
| Small Visible Spot | Laser |
| Input Output | Discrete |
| Max Sensing Distance (mm) | 40000 |
| Outputs | Bipolar (NPN & PNP) |
| Power Supply/Supply Voltage | 10-30 V dc |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Operation | Light/Dark Operate |
| Min Op. Temp. (°C) | -10 |
| Max Op. Temp. (°C) | 40 |
| Output response time (ms) | 2 |
| Special Feature: Intrinsically Safe | No |
| Special Feature: Remote Teach | No |
| Special Feature: Water Detection | No |
| Delay at Power-up (ms) | 100 |
| Repeatability (µs) | 500 |
| Number of Pins | 5 |
| NEMA Rating | NEMA 6P |
| Max Op. Relative Humidity [%] | 90% @ 50°C |
| Lens Material | Acrylic |
| Adjustments | Potentiometer |
| Barrel Diameter (mm) | 30 |
| Indicator | LEDs |
| Feature: Timing (Hold/Delay) | Yes |
| Feature: Audible | No |
| Feature: Quick Disconnect | Yes |
| Origin | US |
| Order Quantity | 1 Each |
| Weight | .6 LB |
| HTS Code (US) | 8541.49.8000 |
| Country of Origin | US |
| Lead Time (Business Days, updated weekly) | 25 |
