EC-FSE4-0.5/16
Product number:

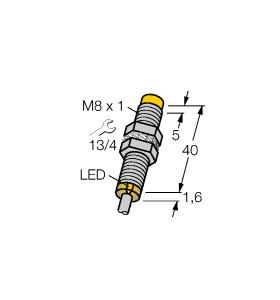

Inductive Sensor, Threaded barrel, M8 x 1, Stainless steel, 1.4427 SO, DC 3-wire, 10…30 VDC, NO contact, PNP output, Cable connection, Cable length 2 m, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Extended temperature range, High switching frequency, Rated switching distance: 4 mm, Non-flush
Download specifications
| Name | Value |
|---|---|
| Width sensor | - MV Millimeter |
| Height of sensor | - MV Millimeter |
| Length of sensor | 42 Millimeter |
| Diameter sensor | 8 Millimeter |
| Mechanical mounting condition for sensor | Not flat |
| Switching distance | 4 Millimeter |
| Suitable for safety functions | No |
| Type of switch function | Normally open contact |
| Type of switching output | PNP |
| Type of electric connection | Cable |
| Number of semiconductor outputs with signalling function | - MV |
| Number of contact energized outputs with signalling function | - MV |
| Number of protected semiconductor outputs | - MV |
| Number of protected contact energized outputs | - MV |
| Type of actuation | Metallic Target |
| Type of interface | - MV |
| Type of interface for safety communication | - MV |
| Construction type housing | Cylinder, screw-thread |
| Coating housing | - MV |
| Cascadable | - MV |
| Category according to EN 954-1 | - MV |
| SIL according to IEC 61508 | - MV |
| Performance level acc. to EN ISO 13849-1 | - MV |
| Max. output current at protected output | - MV milliampere |
| Supply voltage | 10, 30 Volt |
| Rated control supply voltage Us at AC 50HZ | - MV Volt |
| Rated control supply voltage Us at AC 60HZ | - MV Volt |
| Rated control supply voltage Us at DC | - MV Volt |
| Voltage type | DC |
| Switching frequency | 2000 Hertz |
| With monitoring function downstream switching devices | - MV |
| Material housing | Metal |
| Compression-resistant | No |
| Explosion safety category for gas | - MV |
| Explosion safety category for dust | - MV |
| Interference resistance to magnetic fields | - MV |
| Customs tarif #: | 85365019900 |
| FEATURES: | Inductive proximity switch Inductive proximity sensor |
| UNIT: | Piece |
| GTIN | 4047101151220 |
