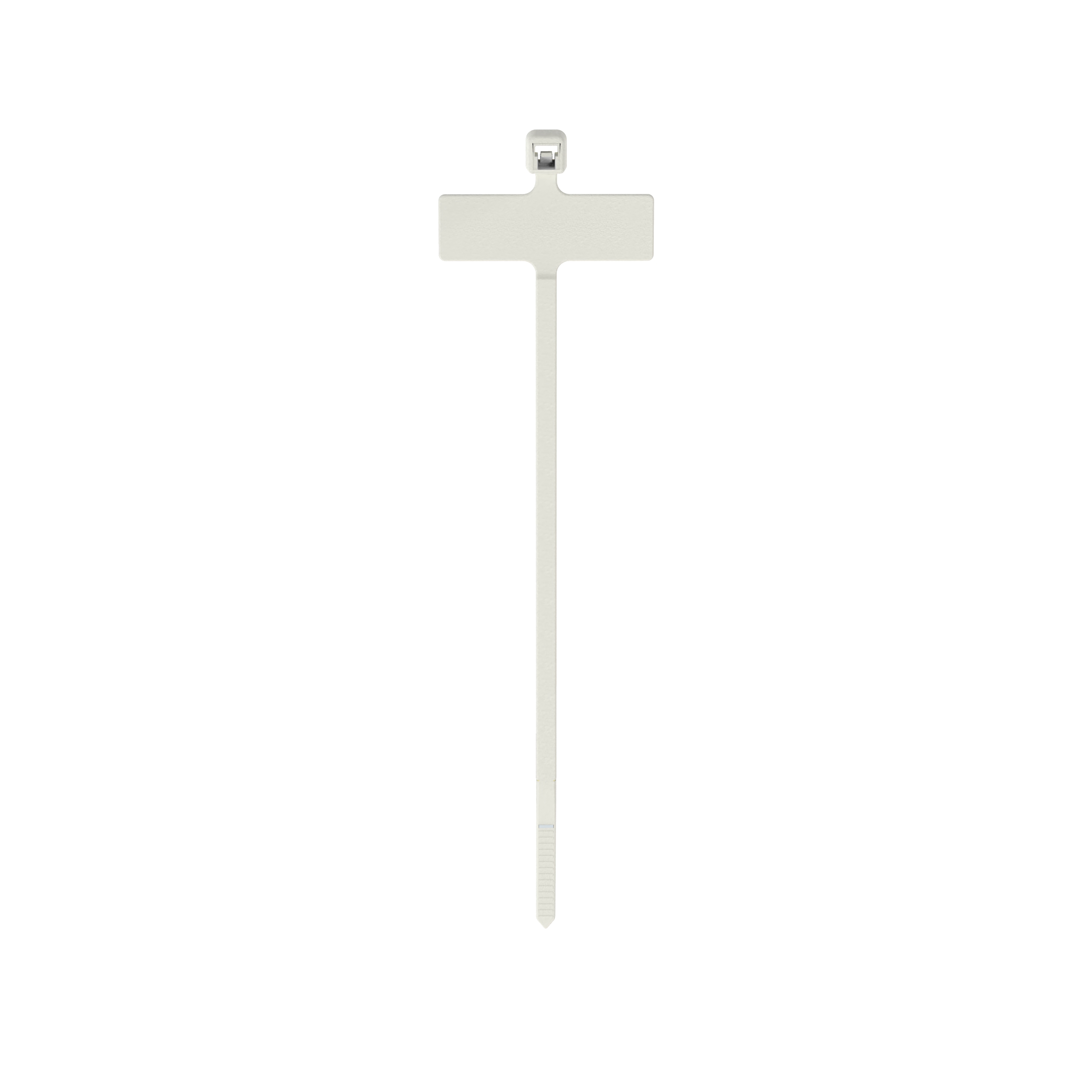

PLM2M-M Wrap Style Marker Ties
Product number: PLM2M-M
EAN number: 0074983553051
EAN number: 0074983553051
Panduit PLM2M-M Wrap Style Marker Ties are used to fasten and identify bundles at the same time. They can be marked with Panduit marker pens or custom imprinted with text, symbols or trademarks using Panduit Custom Hot Stamping Service. The curved tip is easy to pick up from flat surfaces and allows faster initial threading. Miniature cross section, 8.0" (203mm) length, .26 x .95" (6.6 x 24.1mm) marker write-on area. For indoor use, made of Nylon 6.6, are natural in color and come in packages of 1000.
Download specifications
Name | Value |
---|---|
Band closure | Plastic lip/-cam |
Material | Plastic |
Halogen free | Yes |
Colour | Natural colour |
Model | Internal toothing |
Text strip | Adjacent to bundle |
UL approval | Yes |
Type of fastening | None |
MIL approval | No |
Reflective (fluorescent) | No |
Transparent | Yes |
UV-stable acc. ASTM D6779 | No |
Max. bundle diameter | 51 |
Solvable fastener | No |
Band width | 2.5 |
Inflammability class of insulation material acc. with UL94 | V2 |
Operation temperature | -60, 85 |
Surface protection | Untreated |
Mounting temperature | -20, 85 |
Min. holding force | 80 |
Material quality | Polyamide (PA) |
Tie thickness | 0.9 |
Length belt/tape/tie | 203 |
VG approval | No |
Customs tarif #: | 39269097 |
FEATURES: | Cable ties Cable tie |
UNIT: | Piece |
GTIN | 74983553051 |
