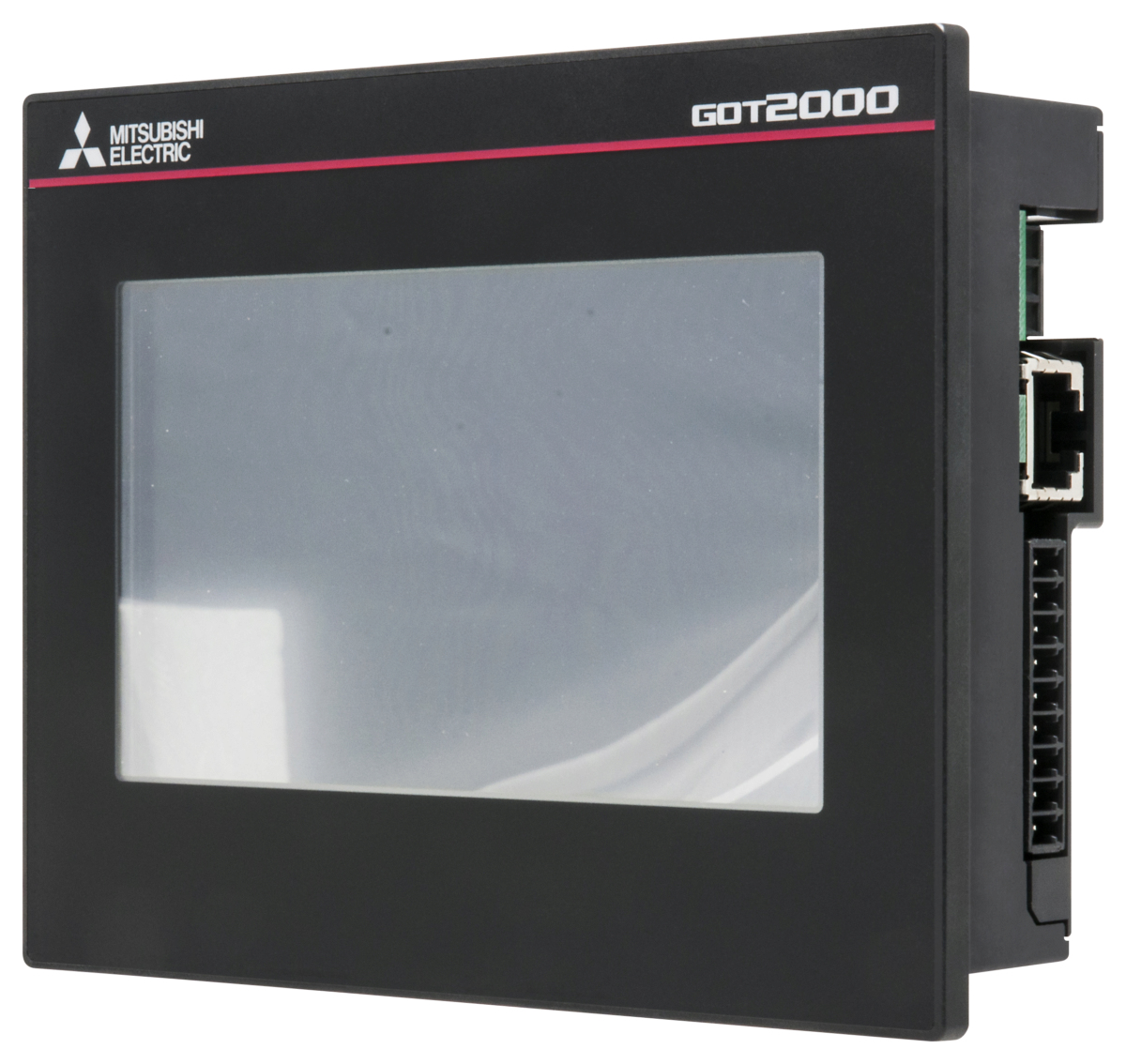

GT2104-RTBD
Product number: MEUH283924
EAN number: 5705378979990
EAN number: 5705378979990
GT2104-RTBD
10 STANDARD ITEM GOT2000;4,3"TFT;DC;480x272;65k Colors;RS-422/485;RS-232;USB;Eth;SD;Black
Download specifications
| Name | Value |
|---|---|
| BasicData | |
| MaterialDescription | GT2104-RTBD |
| ProductHierachy | IAT93001 |
| ProductSubgroup | Small HMI |
| ExternalMaterialGroup | 10 STANDARD ITEM |
| CommodityCode | 85371091 |
| OriginCountry | JP |
| ABCIndicator | A |
| PriceListTextEN | GOT2000;4,3"TFT;DC;480x272;65k Colors;RS-422/485;RS-232;USB;Eth;SD;Black |
| PriceListTextDE | GOT2000;4,3"TFT;DC;480x272;65k Farben;RS-422/485;RS-232;USB;Eth;SD;Schwarz |
| DualUseList | |
| GrossWeight | 0.506 |
| WeightUnit | KG |
| Volume | 2.128 |
| VolumeUnit | CDM |
| BrutLength | 19.0 |
| BrutWidth | 14.0 |
| BrutHeight | 8.0 |
| DimensionUnit | CM |
| DimensionData | |
| NetWidth | 128 |
| NetDepth | 42,9 |
| NetHeight | 102 |
| NetWeight | 0,4 |
| EnvironmentData | |
| ReachLimitExceeded | NO |
| ReachSubstanceCASNumber | N/A |
| DangerousGoodsRegulations | NO |
| RoHSCompliance | NO |
| ProductSpecificationCharacteristics | |
| ClassGroup | FA-HMI |
| Class | 100100301 |
| ClassDescription | FA-HMI: Human Machine Interface |
| MaterialCharacteristics | |
| Series | |
| Type | TOUCH PANEL |
| Power Supply (V) | 24 |
| Current Type | DC |
| Display | TFT |
| Display Colour | 65536 |
| Display Size (Inch) | 4,3 |
| Resolution (Pixels) | 480X272 |
| Internal Memory Capacity (MB) | 9 |
| Memory Card Slot | SD |
| USB | 1 |
| Ethernet Port | 1 |
| RS-232 | 1 |
| RS-422/485 | 1 |
| RS-422 | N/A |
| Network Options | MODBUS, ETHERNET |
| Slot for Optional Cards | N/A |
| Protection Class | IP67F |
