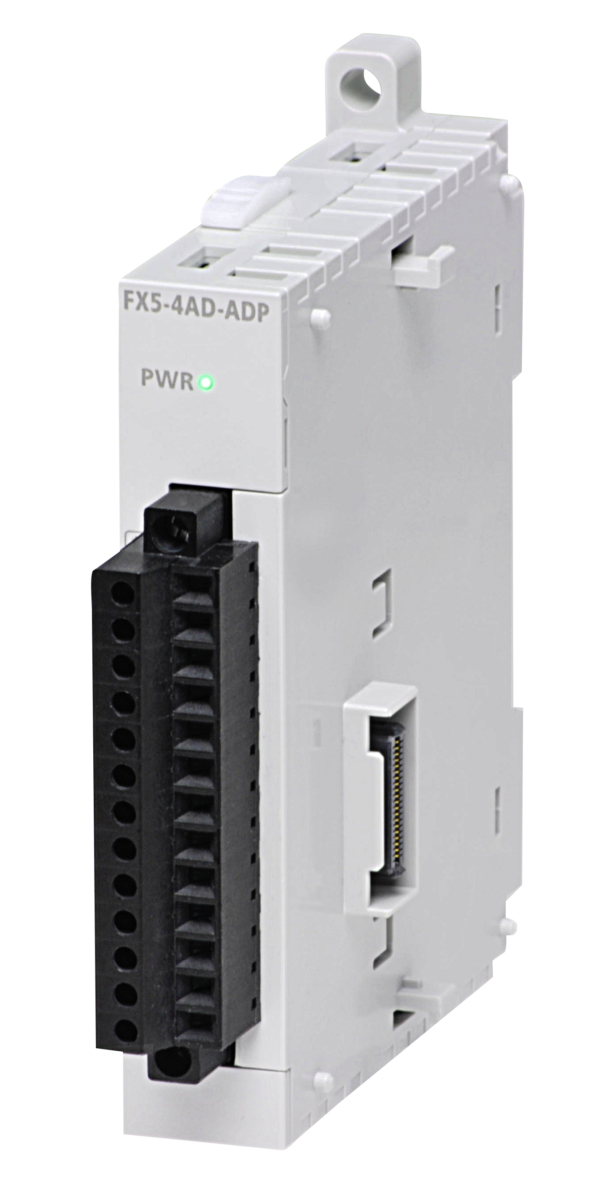

FX5-4AD-ADP
Product number: MEUP283559
EAN number: 5705379055969
EAN number: 5705379055969
FX5-4AD-ADP
10 STANDARD ITEM FX5;Analog Input Module;4 channels
Download specifications
| Name | Value |
|---|---|
| BasicData | |
| MaterialDescription | FX5-4AD-ADP |
| ProductHierachy | IAD21703 |
| ProductSubgroup | FX5 Intelligent Unit |
| ExternalMaterialGroup | 10 STANDARD ITEM |
| CommodityCode | 85389099 |
| OriginCountry | JP |
| ABCIndicator | A |
| PriceListTextEN | FX5;Analog Input Module;4 channels |
| PriceListTextDE | FX5;Analog Eingangsmodul;4 Kanäle |
| DualUseList | |
| GrossWeight | 0.15 |
| WeightUnit | KG |
| Volume | 0.569 |
| VolumeUnit | CDM |
| BrutLength | 11.5 |
| BrutWidth | 11.0 |
| BrutHeight | 4.5 |
| DimensionUnit | CM |
| DimensionData | |
| NetWidth | 17,6 |
| NetDepth | 89,1 |
| NetHeight | 106 |
| NetWeight | 0,1 |
| EnvironmentData | |
| ReachLimitExceeded | NO |
| ReachSubstanceCASNumber | N/A |
| DangerousGoodsRegulations | NO |
| RoHSCompliance | NO |
| ProductSpecificationCharacteristics | |
| ClassGroup | FA-COM PLC |
| Class | 100100103 |
| ClassDescription | FA-COM PLC: Analogue I/O Module |
| MaterialCharacteristics | |
| Series | MELSEC IQ-F SERIES |
| Type | ANALOG INPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied I/O Points on PLC | N/A |
| Integrated Analogue Inputs | 4 |
| Integrated Analogue Outputs | N/A |
| Input Voltage Range (V) | -10-10; 0-10; 0-5; 1-5 |
| Input Current Range (mA) | -20-20; 0-20; 4-20 |
| Output Voltage Range (V) | N/A |
| Output Current Range (mA) | N/A |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
