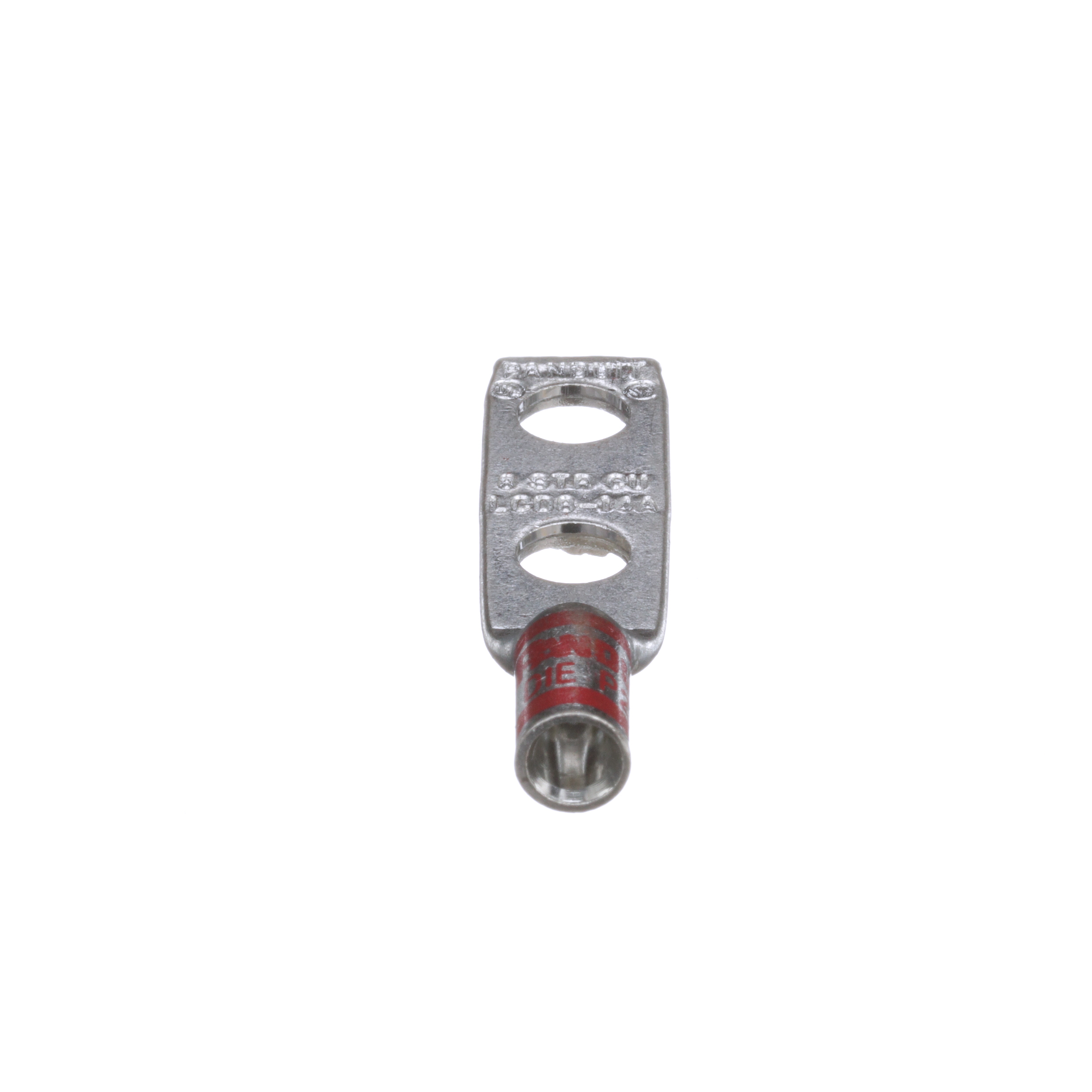

Copper Compression Connector Lug
Product number: LCD8-14A-L
EAN number: 0074983383160
EAN number: 0074983383160
The LCD8-14A-L Copper Compression Connector Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified.
Download specifications
| Name | Value |
|---|---|
| Nominal cross section | 10 |
| Number of mounting holes | 2 |
| Connecting angle | 180° (horizontal) |
| Bolt dimension (metric) | 6.4 |
| Surface protection | Tinned |
| Material | Copper |
| Conductor category | Other |
| AWG size | 8 |
| Slender flange model | No |
| Flange shape | Ring shape |
| With sight-hole | Yes |
| Insulated | No |
| Colour insulation | - |
| Customs tarif #: | 85359000 |
| FEATURES: | Crimp cable lug for copper conductors Cable lug |
| UNIT: | Piece |
| GTIN | 74983383160 |
