Dome-Top® Cable Tie
Product number: BM1M-C
EAN number: 5705379098799
EAN number: 5705379098799

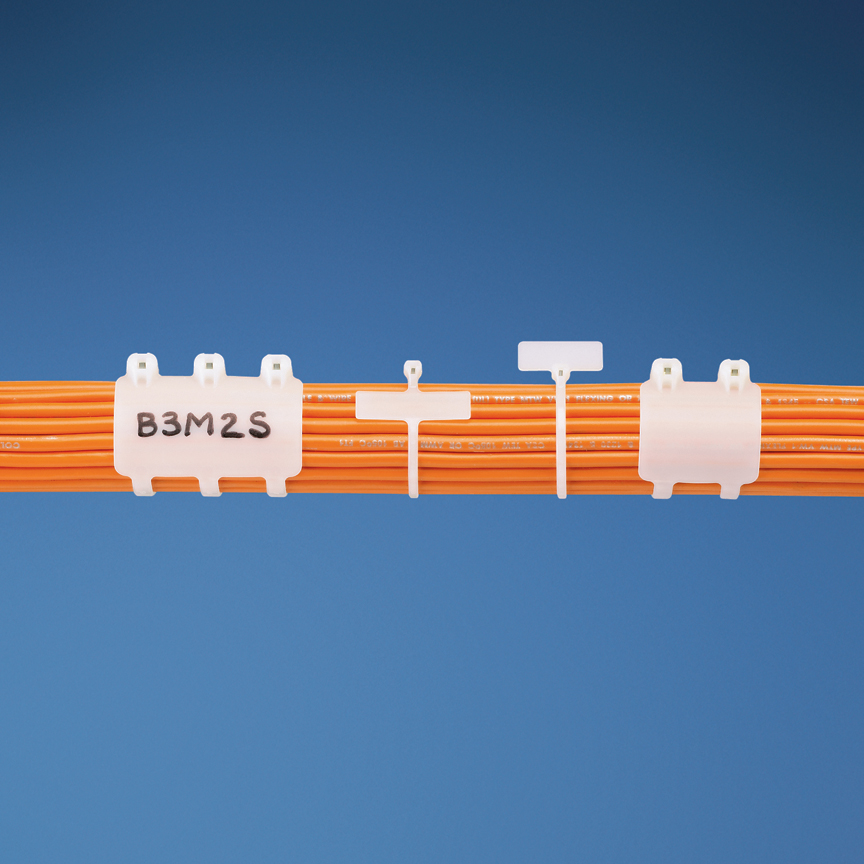

Marker Tie, Wrap Style, 4.2 Inches (107 mm) Length, Miniature, Nylon 6.6, Natural. For indoor use. Used to fasten and identify bundles at the same time. Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range. Can be marked with Panduit Marker Pens (sold separately) or custom imprinted with text, symbols or trademarks using Panduit Custom Hot Stamping Service. Curved tip is easy to pick up from flat surfaces and allows faster initial threading.
Download specifications
| Name | Value |
|---|---|
| Band closure | Steel nose |
| Model | Without toothing |
| Text strip | Adjacent to bundle |
| Colour | Natural colour |
| Halogen free | Yes |
| Material | Plastic |
| Type of fastening | None |
| UL approval | No |
| MIL approval | Yes |
| Reflective (fluorescent) | No |
| Transparent | Yes |
| Surface protection | Untreated |
| Length belt/tape/tie | 107 |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Tie thickness | 1.2 |
| UV-stable acc. ASTM D6779 | No |
| VG approval | No |
| Solvable fastener | No |
| Min. holding force | 80 |
| Max. bundle diameter | 23 |
| Operation temperature | -60, 85 |
| Mounting temperature | -20, 85 |
| Band width | 2.4 |
| Material quality | Polyamide (PA) |
| Customs tarif #: | 39269097 |
| FEATURES: | Kabelbinder Kabelbinder |
| UNIT: | Piece |
| GTIN | 74983738502 |
