Panduit PLF1MA-C Flag Style Marker Ties
Product number: PLF1MA-C
EAN number: 0074983553143
EAN number: 0074983553143

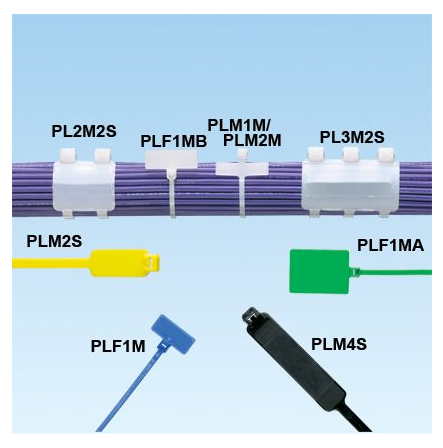

Panduit PLF1MA-C Flag Style Marker Ties are used to fasten and identify bundles at the same time. They can be marked with Panduit marker pens or custom imprinted with text, symbols or trademarks using Panduit Custom Hot Stamping Service. The curved tip is easy to pick up from flat surfaces and allows faster initial threading. Miniature cross section, 5.1" (130mm) length, .76 x 1.04" (19.1 x 26.4mm) marker write-on area. For indoor use, made of Nylon 6.6, are natural in color and come in packages of 100.
Download specifications
| Name | Value |
|---|---|
| Model | Internal toothing |
| Halogen free | Yes |
| Band closure | Plastic lip/-cam |
| Colour | Natural colour |
| Material | Plastic |
| Text strip | Distant from bundle |
| UL approval | Yes |
| Type of fastening | None |
| MIL approval | No |
| Transparent | Yes |
| Reflective (fluorescent) | No |
| Min. holding force | 80 |
| UV-stable acc. ASTM D6779 | No |
| Mounting temperature | -20, 85 |
| Surface protection | Untreated |
| Band width | 2.5 |
| Length belt/tape/tie | 130 |
| Max. bundle diameter | 22 |
| VG approval | No |
| Material quality | Polyamide (PA) |
| Operation temperature | -60, 85 |
| Solvable fastener | No |
| Tie thickness | 1.1 |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Customs tarif #: | 39269097 |
| FEATURES: | Cable ties Cable tie |
| UNIT: | Piece |
| GTIN | 74983553143 |
