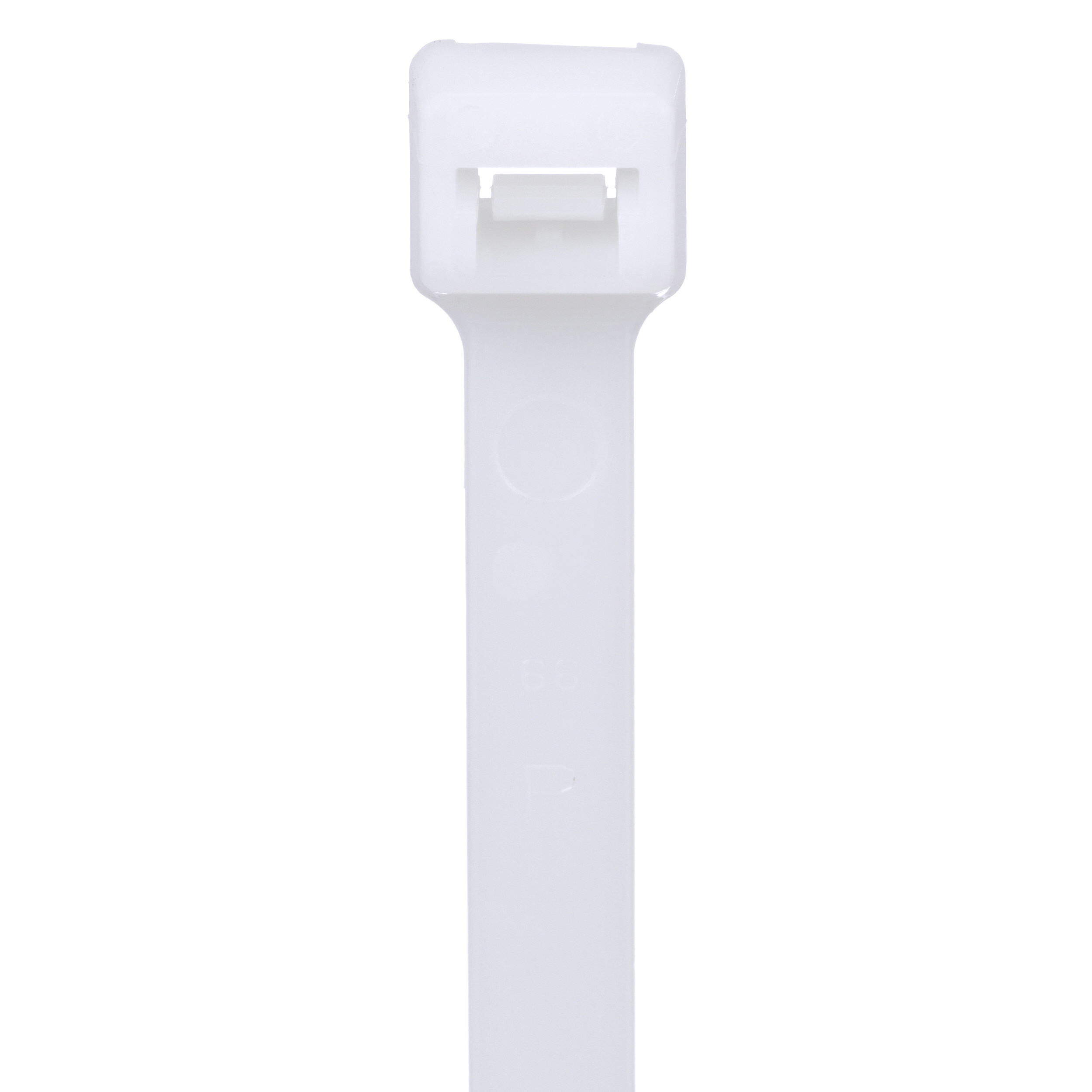

PLT8LH-C Locking Cable Ties
Product number: PLT8LH-C
EAN number: 0074983548552
EAN number: 0074983548552
Panduit PLT8LH-C Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Light-Heavy cross section, 27.6" (701mm) length. Made of Nylon 6.6, are natural in color and come in packages of 100.
Download specifications
| Name | Value |
|---|---|
| Material | Plastic |
| Model | Internal toothing |
| Halogen free | Yes |
| Band closure | Plastic lip/-cam |
| Colour | Natural colour |
| UL approval | Yes |
| Type of fastening | None |
| Text strip | None |
| MIL approval | Yes |
| Transparent | Yes |
| Reflective (fluorescent) | No |
| UV-stable acc. ASTM D6779 | No |
| Band width | 7.6 |
| Tie thickness | 1.9 |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Length belt/tape/tie | 701 |
| Max. bundle diameter | 203 |
| Solvable fastener | No |
| VG approval | No |
| Material quality | Polyamide (PA) |
| Surface protection | Untreated |
| Mounting temperature | -20, 85 |
| Min. holding force | 534 |
| Operation temperature | -60, 85 |
| Customs tarif #: | 39269097 |
| FEATURES: | Cable ties Cable tie |
| UNIT: | Piece |
| GTIN | 74983548552 |
