EC-FKFDW4.54-0.5/16
Product number:

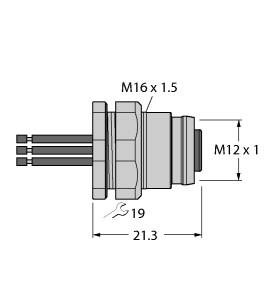

Accessories for Fieldbus Systems, Flange, Design: M12 female connector, Reverse-keyed, 5-pin, stranded wire 0.5 m, Back-panel mounting, M16 × 1.5 metric screw-in thread, For use in PROFIBUS-DP applications, Cable length 0.5 m
Download specifications
| Name | Value |
|---|---|
| Number of poles | 5 |
| Type of electrical connection, outer side | M12 |
| Type of electrical connection, inner side | Wire |
| Type of plug-in contact, outer side | Female (bus) |
| Type of plug-in contact, inner side | - MV |
| With thread | - MV |
| Wire length connecting cable | 500 Millimeter |
| Customs tarif #: | 85444290900 |
| UNIT: | Piece |
| GTIN | 4047101392364 |
