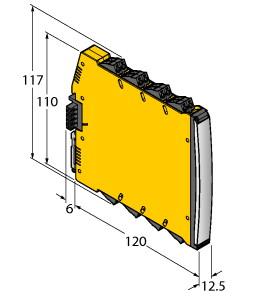

IMX12-TI01-2RTDR-2I-CPR/24VDC
Product number:
Temperature measuring amplifier, 2-channel, ATEX, IECEx, cFM,cUL, NEPSI, INMETRO, Kosha, TR CU EAC CMI, Installation in zone 2, SIL 2, Input circuits monitored for wire-break and short-circuit, Parameterized via PC, Complete galvanic isolation, Input reverse-polarity protected, Removable screw terminals, Power bridge (connector incl. in delivery)
Download specifications
| Name | Value |
|---|---|
| Measuring range | - MV Degrees celsius |
| Analogue output 0 mA ... 20 mA | - MV |
| Analogue output 4 mA ... 20 mA | - MV |
| Analogue output 0 V ... 2 V | - MV |
| Analogue output 0 V ... 5 V | - MV |
| Analogue output 0 V ... 10 V | - MV |
| Analogue output 2 V ... 10 V | - MV |
| With switching output | - MV |
| Modular version | Yes |
| Integrated configuration function | - MV |
| EMC-version | - MV |
| Ambient temperature | -25, 70 Degrees celsius |
| Weight | 170 Kilogram |
| Customs tarif #: | 85437090990 |
| UNIT: | Piece |
| GTIN | 4047101311389 |
