SG-TL70-AP
Product number: SG-TL70-AP
EAN number: 5705379202660
EAN number: 5705379202660

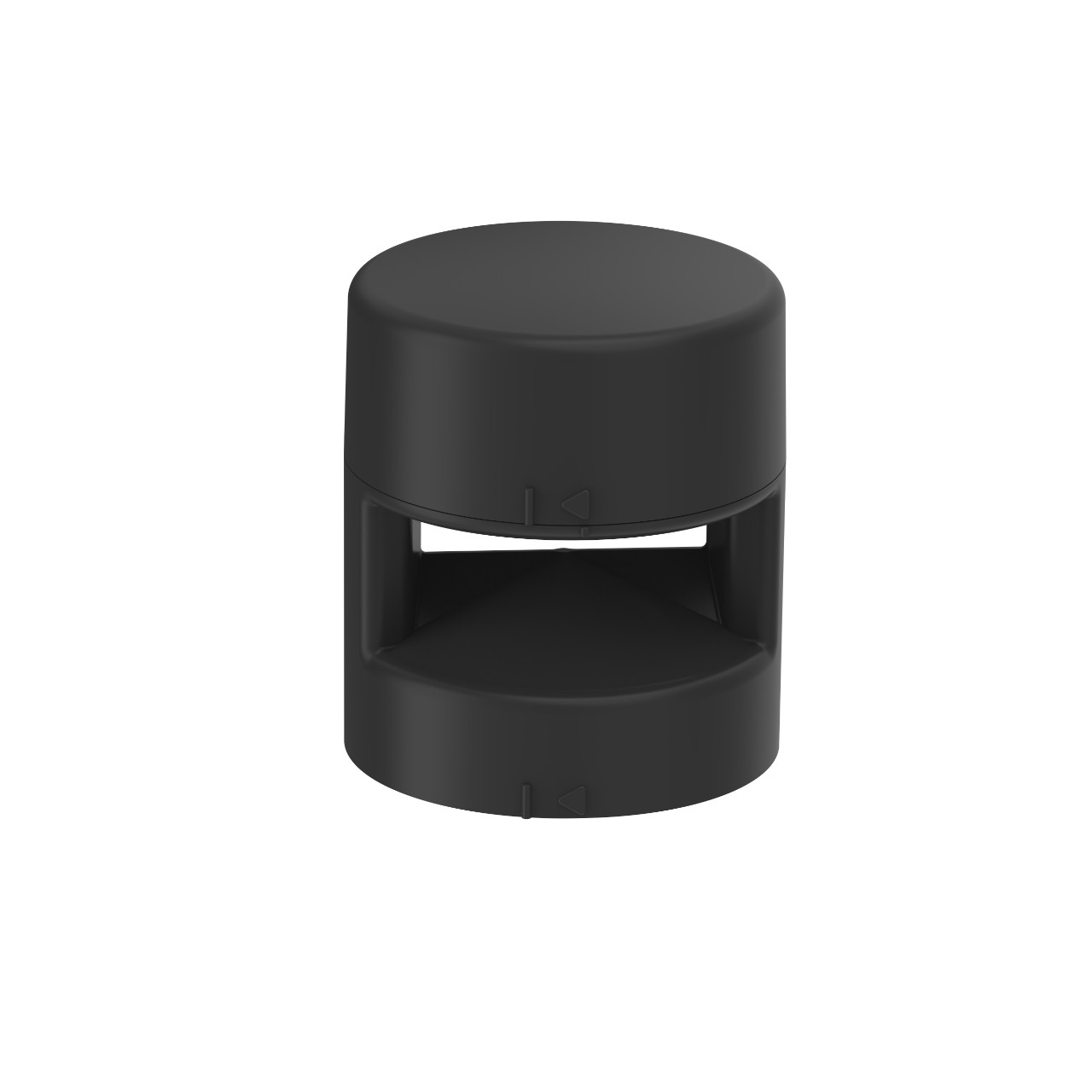

TL70 Programmable Audible Module; Voltage: 12-30 V dc; Environmental Rating: IP50; WAV or MP3 file; Black Housing
Banner Engineering
Download specifications
| Name | Value |
|---|---|
| Power | DC or AC |
| Non-Illuminated | Yes |
| Display | No |
| IP Rating | IP50 |
| Housing Style | Segment - Audible |
| Primary Housing Material | Polycarbonate |
| Indication | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Product Size (mm) | 70 |
| Number of Tower Light Segments | 1 |
| Audible Alarm Type | Programmable Single Tone |
| Max Audible Intensity (db at 1m) | 85 |
| Audible Operating Frequency (kHz) | 2.5 |
| Max Current - Audible Alarm (mA) | 250 |
| Physical Dimensions (LxWxH or DxH mm) | 70.0 x 79.6 |
| Environmental Rating | IP50 |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -20 |
| Storage Temp (°C) | -40 to 70 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Feature: Audible | Audible Only |
| Feature: Quick Disconnect | No |
| Origin | MX |
| Order Quantity | 1 Each |
| Weight | .42 LB |
| HTS Code (US) | 8531.80.0050 |
| Country of Origin | MX |
| Lead Time (Business Days, updated weekly) | 40 |
