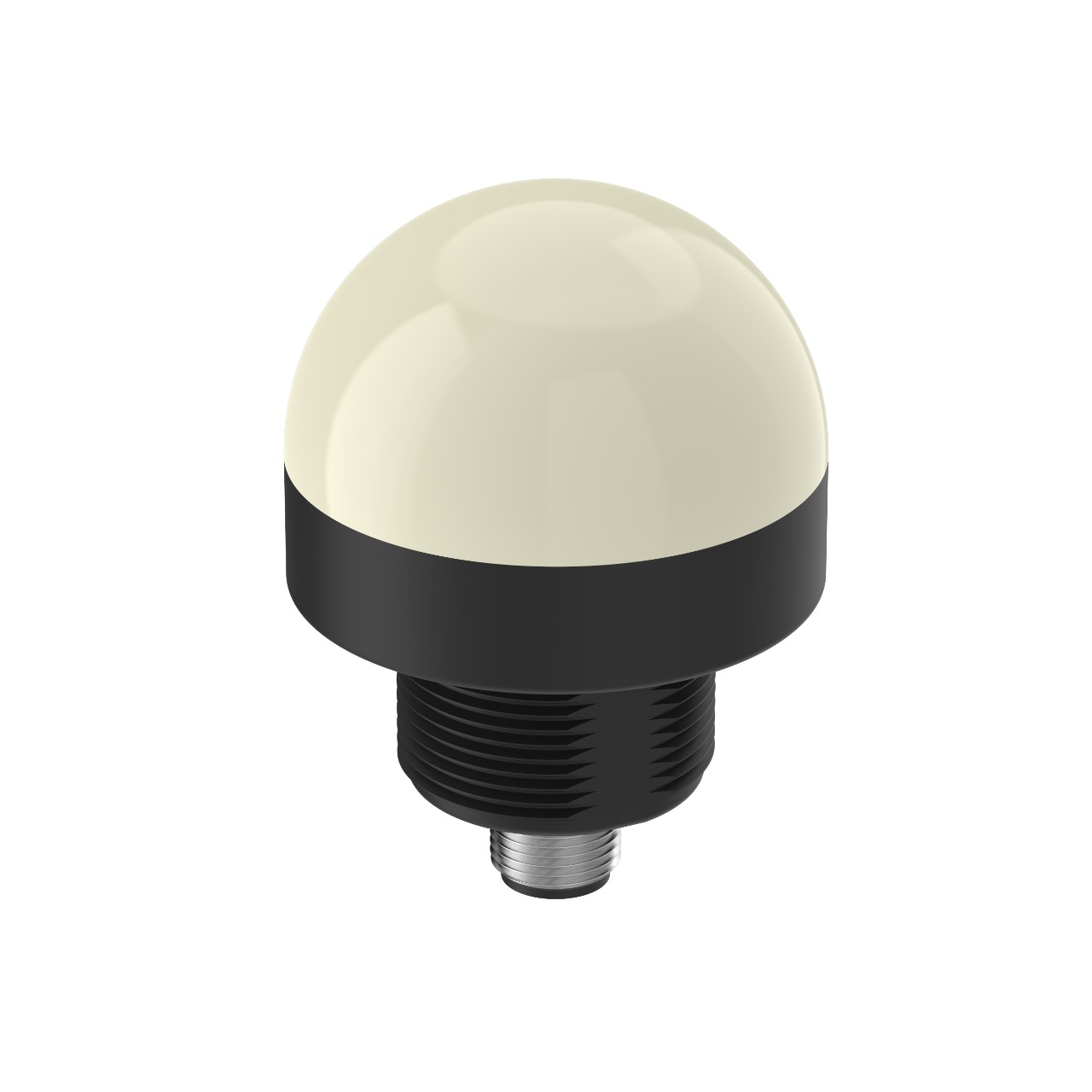

K50L2RGB7Q
Product number: K50L2RGB7Q
EAN number: 5705379078166
EAN number: 5705379078166
K50 Pro Series: 7-color RGB Indicator; Voltage: 10-30 V dc; Housing: Polycarbonate; IP66 IP67 IP69K; Input: Bimodal; Colors: Multicolor; 5-pin M12 Integral QD
Download specifications
| Name | Value |
|---|---|
| Power | DC |
| Display | No |
| IP Rating | IP66, IP67, IP69K |
| Housing Style | Base Mount - Dome Window |
| Primary Housing Material | Polycarbonate |
| Indication | Yes |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Number of Colors | 7 |
| Product Size (mm) | 50 |
| Color Technology | RGB Configurable |
| Color Option 1 | Red |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Lumens Color 1 | 6.3 |
| Color 1 - Wavelength/Color Temp/Coordinates | 625 nm |
| Color Option 2 | Green |
| Lumens Color 2 | 21.4 |
| Color 2 - Wavelength/Color Temp/Coordinates | 530 nm |
| Color Option 3 | Blue |
| Lumens Color 3 | 4.7 |
| Color 3 - Wavelength/Color Temp/Coordinates | 470 nm |
| Color Option 4 | Yellow |
| Lumens Color 4 | 17.2 |
| Color 4 - Wavelength/Color Temp/Coordinates | 0.457, 0.485 |
| Color Option 5 | White |
| Lumens Color 5 | 21.3 |
| Color 5 - Wavelength/Color Temp/Coordinates | 5950K |
| Color Option 6 | Magenta |
| Lumens Color 6 | 8.5 |
| Color 6 - Wavelength/Color Temp/Coordinates | 0.365, 0.176 |
| Color Option 7 | Cyan |
| Lumens Color 7 | 25.1 |
| Color 7 - Wavelength/Color Temp/Coordinates | 0.154, 0.321 |
| Max Current Color (mA) | 220 |
| Wire Selectable Function | Multi-Function |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 10-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
| Max Input Response Time (ms) | 250 |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 69.0 |
| Environmental Rating | IP66; IP67; IP69K |
| NEMA Type and UL Type Rating | NEMA and UL 4X, 13 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Storage Temp (°C) | -40 to 70 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Feature: Washdown Rated | Yes |
| Feature: Audible | No |
| Multi-Color Device | Single Color On |
| Feature: Quick Disconnect | Yes |
| Pro-Editor Compatible (Discrete) | Yes |
| Origin | US |
| Order Quantity | 1 Each |
| Weight | .3 LB |
| HTS Code (US) | 8531.20.0040 |
| Country of Origin | US |
| Lead Time (Business Days, updated weekly) | 20 |
