K50L2RGBKQ
Product number: K50L2RGBKQ
EAN number: 5705379141099
EAN number: 5705379141099

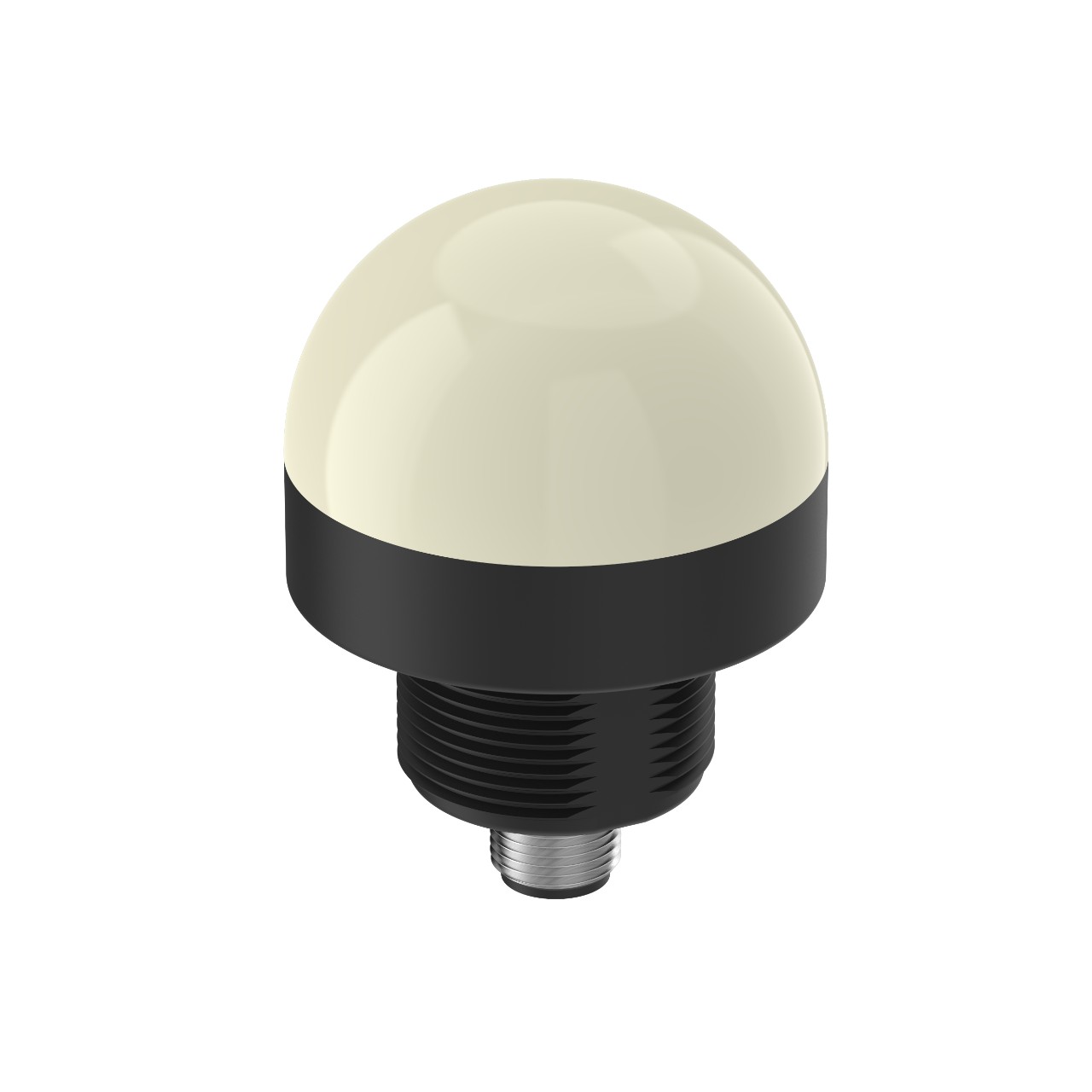

K50 Pro with IO-Link Series: RGB Indicator; Voltage: 18 - 30 V dc; Housing: Polycarbonate; IP66 IP67 IP69K; Colors: Multicolor; 4-pin M12 Integral QD
Download specifications
| Name | Value |
|---|---|
| Power | DC |
| Display | No |
| IP Rating | IP66, IP67, IP69K |
| Housing Style | Base Mount - Dome Window |
| Primary Housing Material | Polycarbonate |
| Indication | Yes |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Communication Protocol |
| Number of Colors | Programmable |
| Product Size (mm) | 50 |
| Color Technology | RGB IO-Link |
| Color Option 1 | RGB |
| Animation Option 1 | IO-Link Controlled |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 150 |
| Dimming Option | Programmable |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 18-30 V dc |
| Input Type | Communication Protocol |
| Max Input Response Time (ms) | 30 |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 69.0 |
| Environmental Rating | IP66; IP67; IP69K |
| NEMA Type and UL Type Rating | NEMA and UL 4X, 13 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Storage Temp (°C) | -40 to 70 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Feature: Washdown Rated | Yes |
| Feature: Audible | No |
| Multi-Color Device | Simultaneous Colors On |
| Feature: Quick Disconnect | Yes |
| IO Link | Yes |
| Origin | US |
| Order Quantity | 1 Each |
| Weight | .32 LB |
| HTS Code (US) | 8531.20.0040 |
| Country of Origin | US |
| Lead Time (Business Days, updated weekly) | 20 |
