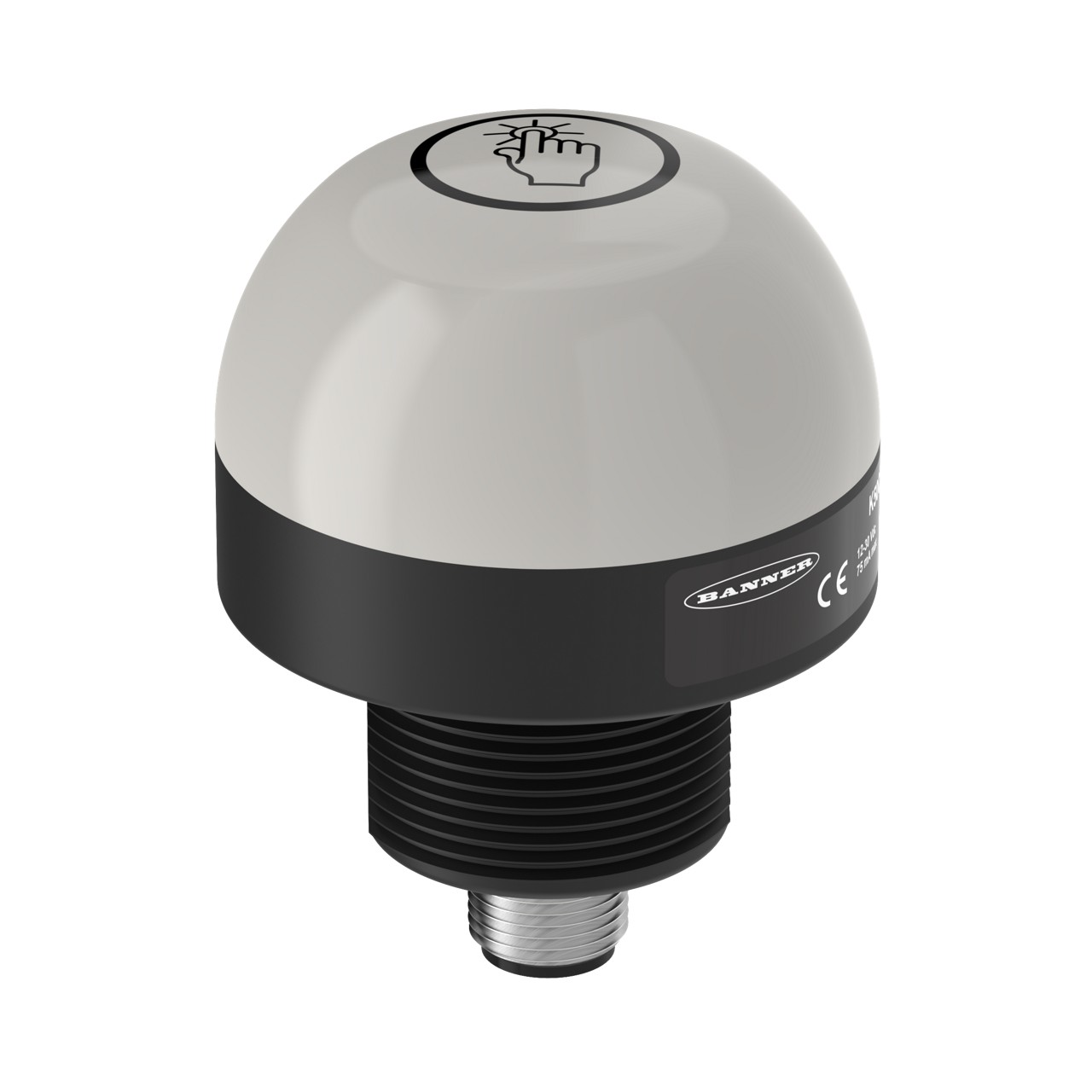

K50APTGRCQ
Product number: 24983BA
EAN number: 0662488249830
EAN number: 0662488249830
K50 Series EZ-LIGHT: 2-Color Touch Sensor; Touch Light Overrides Job Light; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Green Red; 4-pin M12 Integral QD
Banner Engineering
Download specifications
| Name | Value |
|---|---|
| Power | DC |
| Display | No |
| IP Rating | IP67, IP69K |
| Housing Style | Base Mount - Dome Window |
| Primary Housing Material | Polycarbonate |
| Actuation | Yes |
| Activation Function | Capacitive Touch |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 2 |
| Product Size (mm) | 50 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Lumens Color 1 | 29.0 |
| Color 1 - Wavelength/Color Temp/Coordinates | 525 nm |
| Color Option 2 | Red |
| Lumens Color 2 | 13.0 |
| Color 2 - Wavelength/Color Temp/Coordinates | 625 nm |
| Max Current Color (mA) | 75 |
| Acknowledge (Sense) Light | Red |
| Pick-to-Light Function | C |
| Number of Input Pins/Conductors | 4 |
| Operation | Normally Open |
| Supply Voltage | 12-30 V dc |
| Output Type | PNP |
| Input Type | PNP |
| I/O Block Compatible | Yes |
| Max Output Response Time (ms) | 50 |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 66.0 |
| Environmental Rating | IP67; IP69K |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Storage Temp (°C) | -40 to 70 |
| Primary Housing Color | Black |
| Button Operation | Momentary |
| Primary Window Material | Polycarbonate Diffused |
| Feature: Washdown Rated | Yes |
| Feature: Audible | No |
| Multi-Color Device | Single Color On |
| Feature: Quick Disconnect | Yes |
| Job Light | Green |
| Origin | MX |
| Order Quantity | 1 Each |
| Weight | .3 LB |
| HTS Code (US) | 8531.20.0040 |
| Country of Origin | MX |
| Lead Time (Business Days, updated weekly) | 38 |
