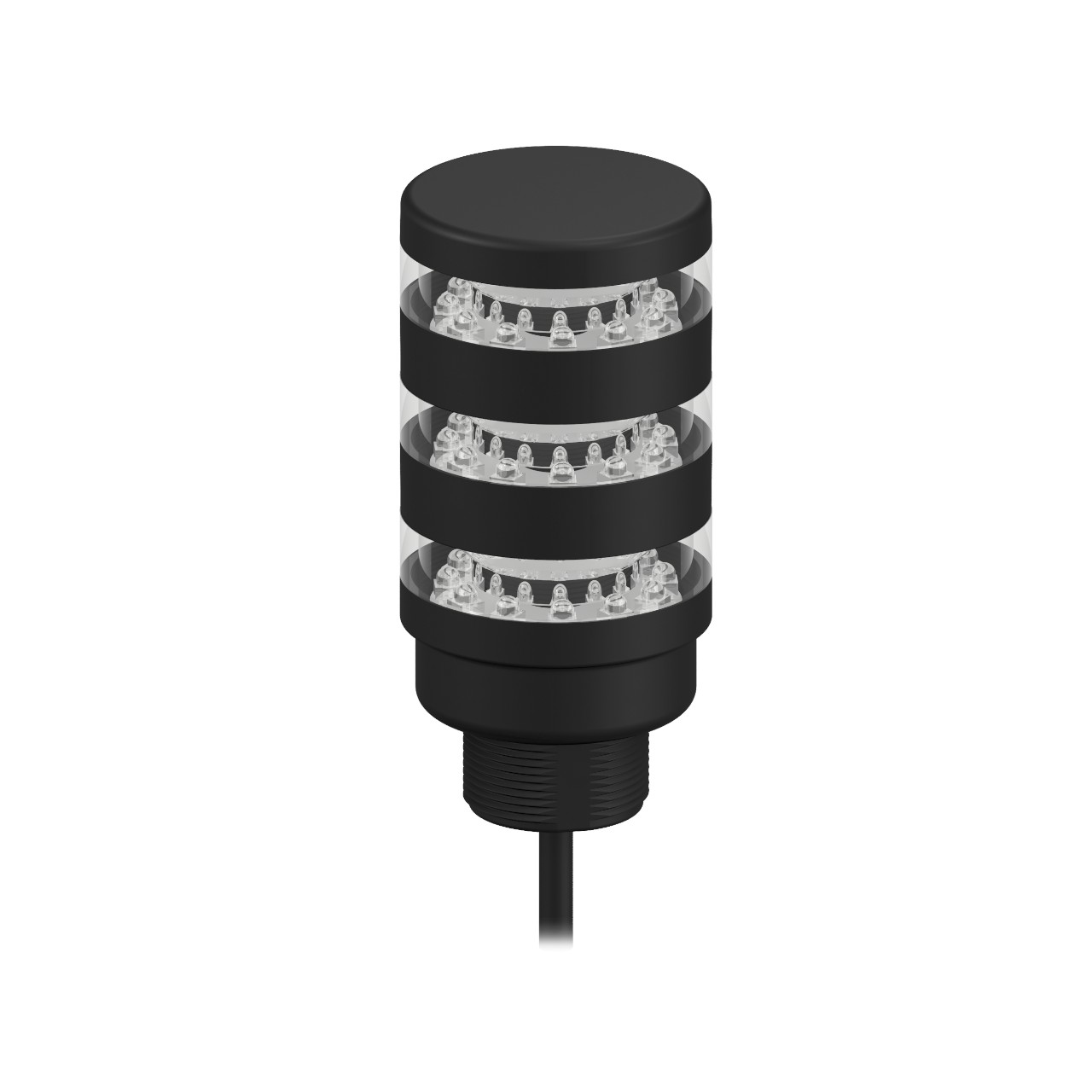

TL50BLGY1R26PQ-94576
Product number: 94576BA
EAN number: 0662488945763
EAN number: 0662488945763
Beacon Tower Light: 3-Color Indicator; Custom pin-out; Voltage: 12-30 V dc or 24 V ac; Environmental Rating: IP67; Input: PNP; Colors: Green Yellow rotate Red flash; 150 mm (6 in) 5-pin M12 Integral QD
Download specifications
| Name | Value |
|---|---|
| Power | DC or AC |
| Display | No |
| IP Rating | IP67 |
| Housing Style | Base Mount - Tower |
| Primary Housing Material | ABS |
| Indication | Yes |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 3 |
| Product Size (mm) | 50 |
| Color Technology | Standard LED |
| Number of Tower Light Segments | 3 |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Lumens Color 1 | 52.0 |
| Color 1 - Wavelength/Color Temp/Coordinates | 525 nm |
| Color Option 2 | Yellow |
| Animation Option 2 | Rotating Only |
| Lumens Color 2 | 15.0 |
| Color 2 - Wavelength/Color Temp/Coordinates | 590 nm |
| Color Option 3 | Red |
| Animation Option 3 | Flashing Only |
| Lumens Color 3 | 24.0 |
| Color 3 - Wavelength/Color Temp/Coordinates | 626 nm |
| Max Current Color (mA) | 125 |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 12-30 V dc/24 V ac |
| Input Type | Bimodal (PNP/NPN) |
| Max Input Response Time (ms) | 1 |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 116.8 |
| Environmental Rating | IP67 |
| NEMA Type and UL Type Rating | NEMA 13 |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Storage Temp (°C) | -40 to 70 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Clear |
| Feature: Audible | No |
| Indication Intensity | High Brightness & Daylight Visible |
| Multi-Color Device | Simultaneous Colors On |
| Feature: Quick Disconnect | Yes |
| Origin | US |
| Order Quantity | 1 Each |
| Weight | .5 LB |
| HTS Code (US) | 8531.80.0050 |
| Country of Origin | US |
| Lead Time (Business Days, updated weekly) | 20 |
