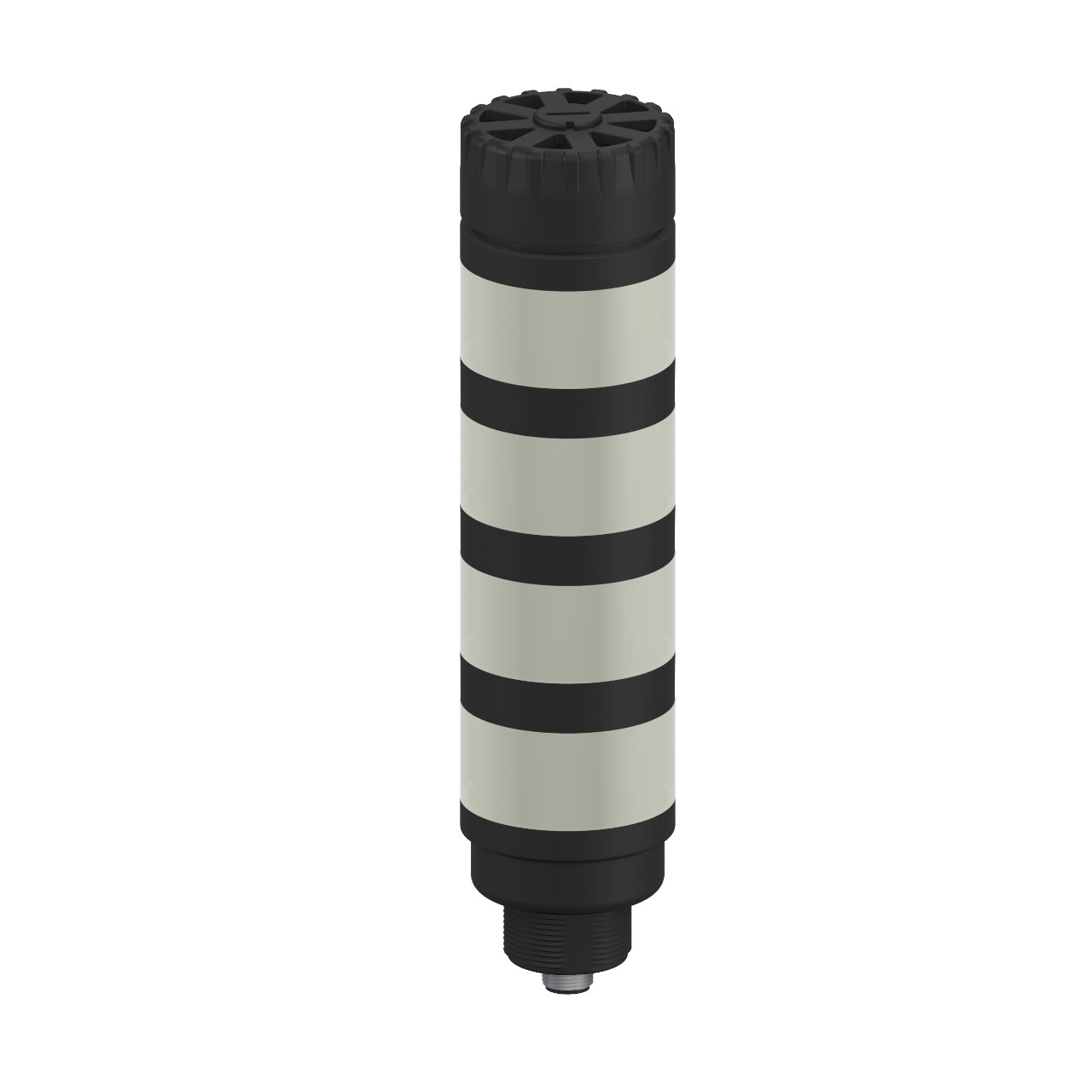

TL50BRGYAQ
Product number: 12910BA
EAN number: 0662488129101
EAN number: 0662488129101
Tower Light: 4-Color Audible Indicator; Voltage: 18-30 V dc or 24 V ac; Environmental Rating: IP50; Input: Bimodal; Colors: Blue Red Green Yellow; 8-pin M12 Integral Connector
Download specifications
| Name | Value |
|---|---|
| Power | DC or AC |
| Display | No |
| Housing Style | Base Mount - Tower |
| Primary Housing Material | ABS |
| Indication | Yes |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 4 |
| Product Size (mm) | 50 |
| Color Technology | Standard LED |
| Number of Tower Light Segments | 5 |
| Color Option 1 | Blue |
| Animation Option 1 | Solid On |
| Connection | Integral QD |
| Lumens Color 1 | 4.5 |
| Quick Disconnect Type | M12 |
| Color 1 - Wavelength/Color Temp/Coordinates | 470 nm |
| Color Option 2 | Red |
| Animation Option 2 | Solid On |
| Lumens Color 2 | 7.5 |
| Color 2 - Wavelength/Color Temp/Coordinates | 625 nm |
| Color Option 3 | Green |
| Animation Option 3 | Solid On |
| Lumens Color 3 | 23.0 |
| Color 3 - Wavelength/Color Temp/Coordinates | 528 nm |
| Color Option 4 | Yellow |
| Animation Option 4 | Solid On |
| Lumens Color 4 | 5.0 |
| Color 4 - Wavelength/Color Temp/Coordinates | 590 nm |
| Max Current Color (mA) | 45 |
| Number of Input Pins/Conductors | 8 |
| Supply Voltage | 18-30 V dc/24 V ac |
| Audible Alarm Type | Continuous |
| Input Type | Bimodal (PNP/NPN) |
| Max Audible Intensity (db at 1m) | 92 |
| Min Audible Intensity (db at 1m) | 62 |
| Audible Operating Frequency (kHz) | 2.7 |
| Max Input Response Time (ms) | 10 |
| Max Current - Audible Alarm (mA) | 25 |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 241.5 |
| Environmental Rating | IP50 |
| NEMA Type and UL Type Rating | NEMA and UL 13 |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Max Op. Temperature (°C) | 50 |
| Min Op. Temperature (°C) | -20 |
| Storage Temp (°C) | -40 to 70 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Feature: Hazardous Area | No |
| Feature: Audible | Yes |
| Feature: Chemical Resistant | No |
| Multi-Color Device | Simultaneous Colors On |
| Feature: Quick Disconnect | Yes |
| IO Link | No |
| Modbus RTU | No |
| Wireless | No |
| Pro-Editor Compatible (Discrete) | No |
| Origin | US |
| Order Quantity | 1 Each |
| Weight | .8 LB |
| HTS Code (US) | 8531.80.0050 |
| Country of Origin | US |
| Lead Time (Business Days, updated weekly) | 45 |
