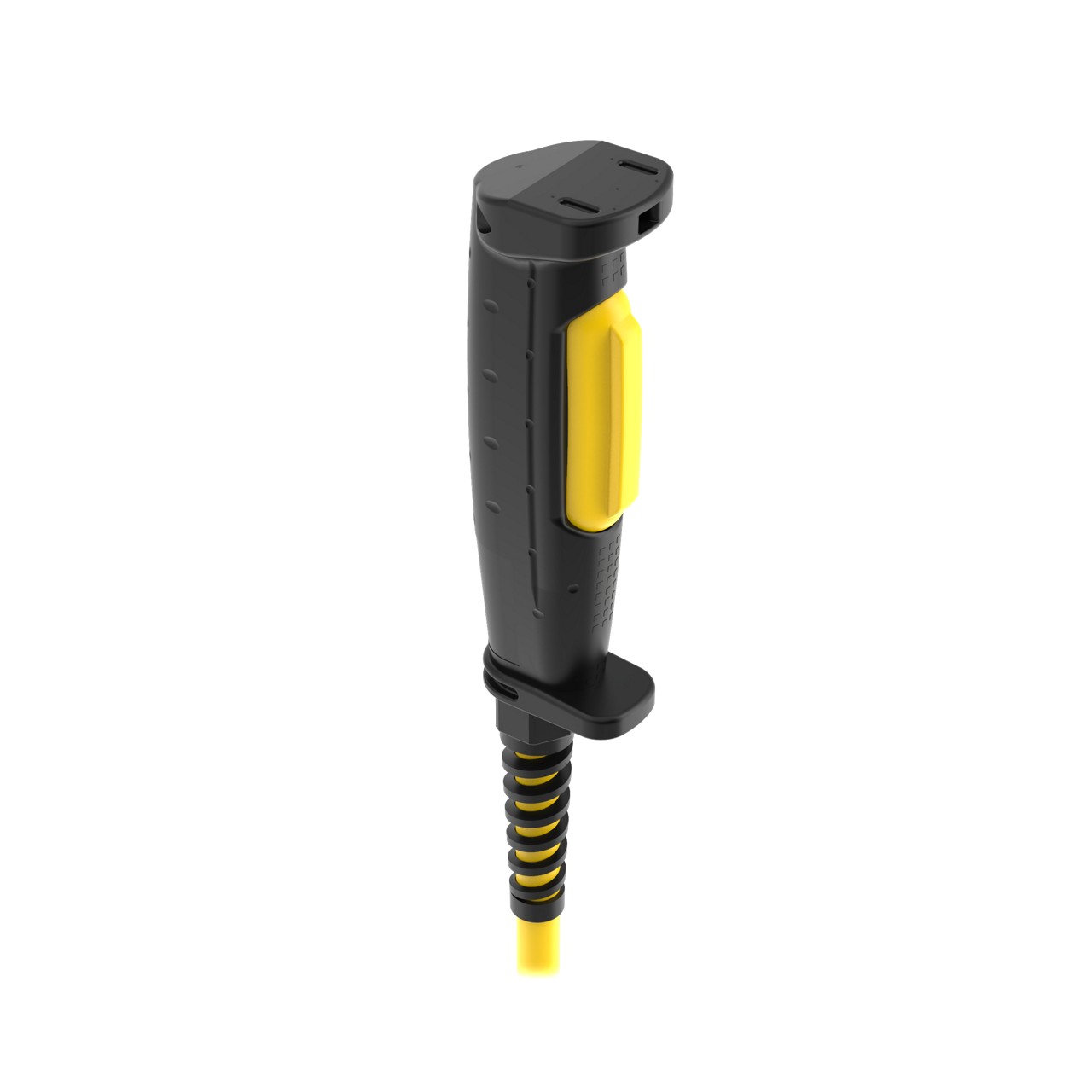

ED1G-L21SM-1N
Product number: 12934BA
EAN number: 0662488129347
EAN number: 0662488129347
Three-position Enabling Device: 2 N/O and 1 N/C Contacts; M20 x 1.5 conduit; Cordset strain relief provided
Banner Engineering
Download specifications
| Name | Value |
|---|---|
| Connection Type | Wiring Chamber |
| IP Rating | IP66 |
| Button Shroud | No |
| Housing Style | HandleGrip Switch |
| Device Type | Enabling Switch |
| Primary Housing Material | Thermoplastic |
| Actuation | Manual |
| Feature: Quick Disconnect | No |
| Contact Quantity | 2 NO, 1 NC |
| Contact Rating | 2 A @ 24 V dc |
| Min Operating Temperature ( °C) | -10 |
| Dimensions (HxWxD mm ) | 269 x 46 x 58 |
| Max Operating Temperature ( °C) | 60 |
| Origin | JP |
| Order Quantity | 1 Each |
| Weight | .627 LB |
| HTS Code (US) | 8536.50.9040 |
| Country of Origin | JP |
| Lead Time (Business Days, updated weekly) | Call Factory |
