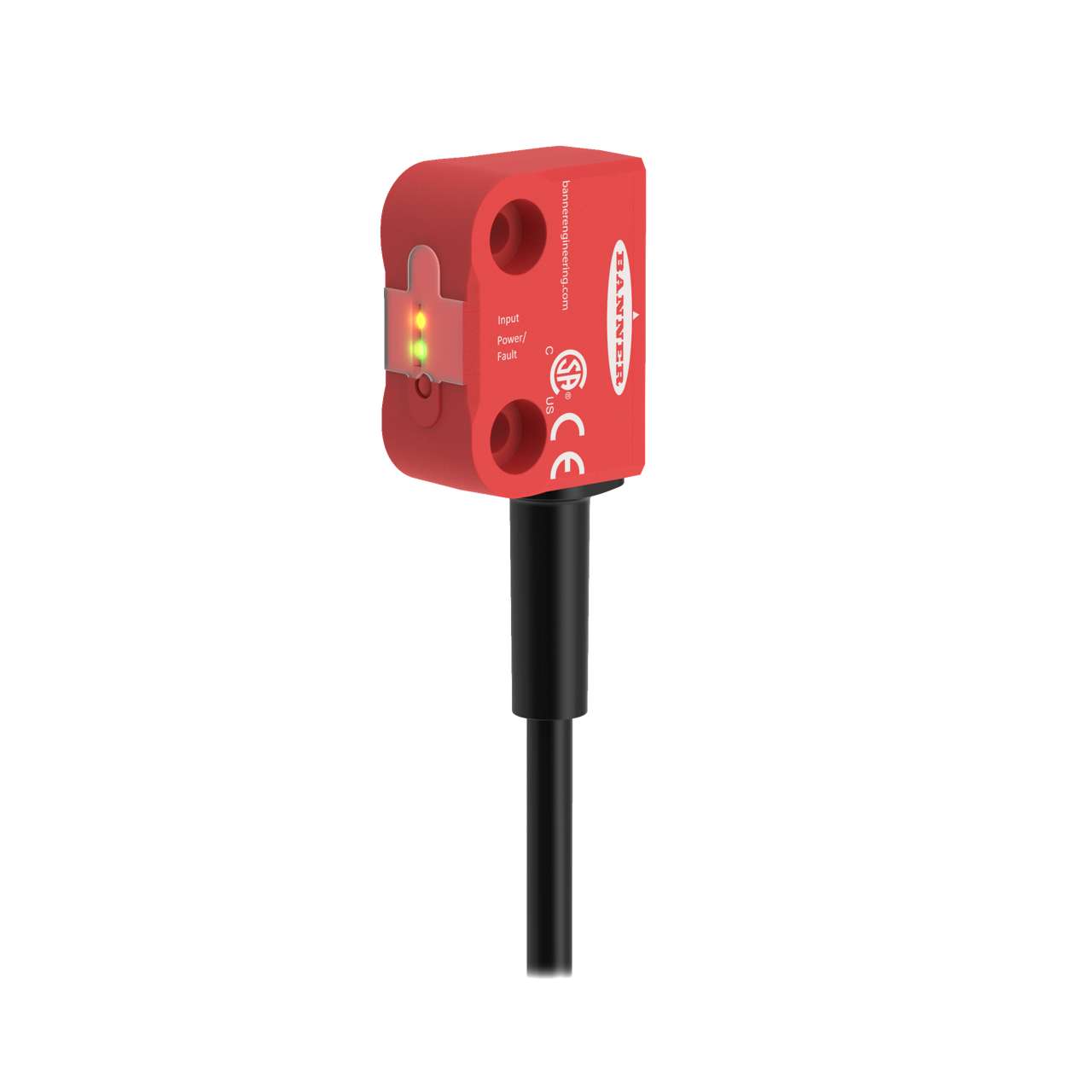

SI-RFST-LP8
Product number: SI-RFST-LP8
EAN number: 5705379234074
EAN number: 5705379234074
SI-RF Safety Switch; Coding: Low; Diagnostics: Series PNP; Reset: Automatic; Connector: 250 mm 8-pin M12 Pigtail QD; Used With: SI-RF-A
Banner Engineering
Download specifications
| Name | Value |
|---|---|
| Switch Style | Non-Contact |
| Device Type | RFID - Sensor |
| Primary Housing Material | Thermoplastic |
| In-Series Diagnostics | No |
| Actuation | Standard |
| Device Size | 36 x 26 x 15 |
| Device Shape | Rectangular |
| Min Op. Temperature (°C) | -25 |
| Max Op. Temperature (°C) | 70 |
| Relative Humidity | 93% @ 50 °C |
| IP Rating | IP69 |
| PL Rating | PL e |
| Safety Category | Cat 4 |
| SIL Rating | SIL CL 3 |
| SISTEMA | PFHd of 1 x 10-9 |
| Actuator (Safety) Contacts | 2 NC |
| Monitor (Locked) Contacts | N/A |
| Output Type | OSSD |
| OSSD Rating | 24 VDC @ 0.1 A each |
| Connection Type | M12 Pigtail |
| Connection | Pigtail QD |
| Feature: Cascade | Yes |
| Feature: Quick Disconnect | Yes |
| H Typical (mm) | 2 |
| Operating Voltage | 24 V dc +25%, -20% |
| Rated Operating Current | 50 mA + output loads |
| Sn Typical | 13 |
| Sar Maximum (mm) | 25 |
| Number of Pins | 8 |
| Sao Minimum (mm) | 10 |
| Coding Level/Tamper Resistance | Low |
| Trip Latch Output | Trip |
| Auxilliary Output | Yes |
| Response Time (ms) | 100 |
| Origin | HU |
| Order Quantity | 1 Each |
| Weight | .25 LB |
| HTS Code (US) | 8536.50.9065 |
| Country of Origin | HU |
| Lead Time (Business Days, updated weekly) | Call Factory |
