SSA-EB1PLGR-12ECQ8-WC
Product number: SSA-EB1PLGR-12EC
EAN number: 5705379076216
EAN number: 5705379076216

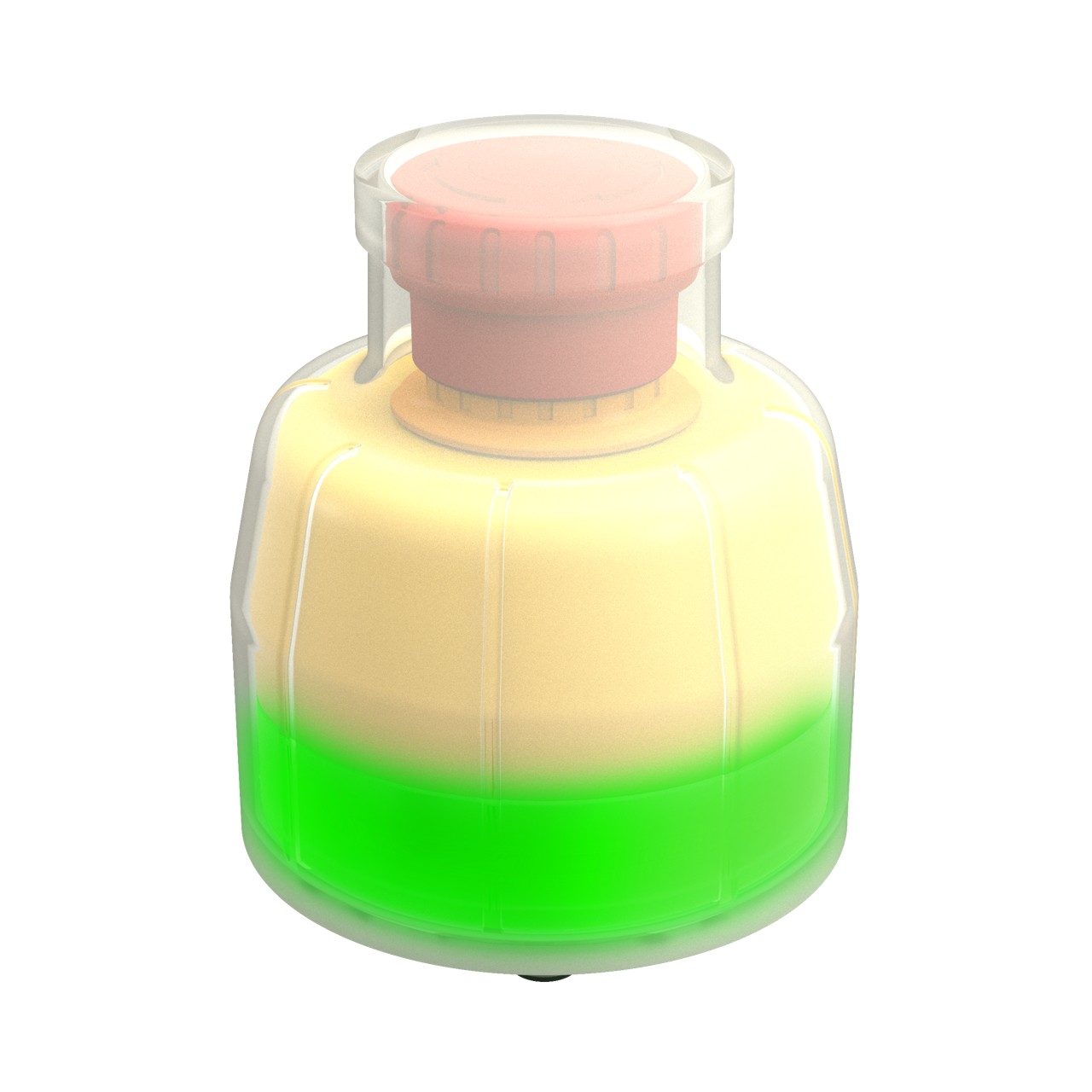

SSA-EB1 30 mm Mount Emergency Stop Push Button; Green and Red Flash/Solid Illuminated Base; 40 mm Actuator; IP69K; Contacts: 2NC/1NO-PNP; 8-pin M12 Integral QD; Includes SSA-EB1P-ECWC Washdown Cover
Banner Engineering
Download specifications
| Name | Value |
|---|---|
| Connection Type | M12 |
| Armed Color (Solid) | Green |
| Actuated Color | Red - Flash |
| IP Rating | IP65, IP67, IP69 |
| Button Shroud | No |
| Illumination Type | Base |
| Housing Style | Base |
| Device Type | Push Button |
| Primary Housing Material | Polycarbonate |
| In-Series Diagnostics | No |
| Actuation | Twist/Pull-to-Release |
| Connection | Integral QD |
| Feature: Washdown Rated | Yes |
| Feature: Illuminated | Yes |
| Feature: Quick Disconnect | Yes |
| Actuator/Button Material | Thermoplastic |
| Contact Quantity | 2 NC, 1 NO |
| Mounting Thread/Style | 30 mm |
| Contact Rating | 2 A @ 24 V dc |
| Min Operating Temperature ( °C) | -25 |
| Dimensions (HxWxD mm ) | 120 x 86 |
| Stop Signal Color ( Solid) | Red |
| Button Diameter (mm) | 40 |
| Max Operating Temperature ( °C) | 55 |
| Origin | JP |
| Order Quantity | 1 Each |
| Weight | .8 LB |
| HTS Code (US) | 8536.50.9035 |
| Country of Origin | JP |
| Lead Time (Business Days, updated weekly) | 47 |
