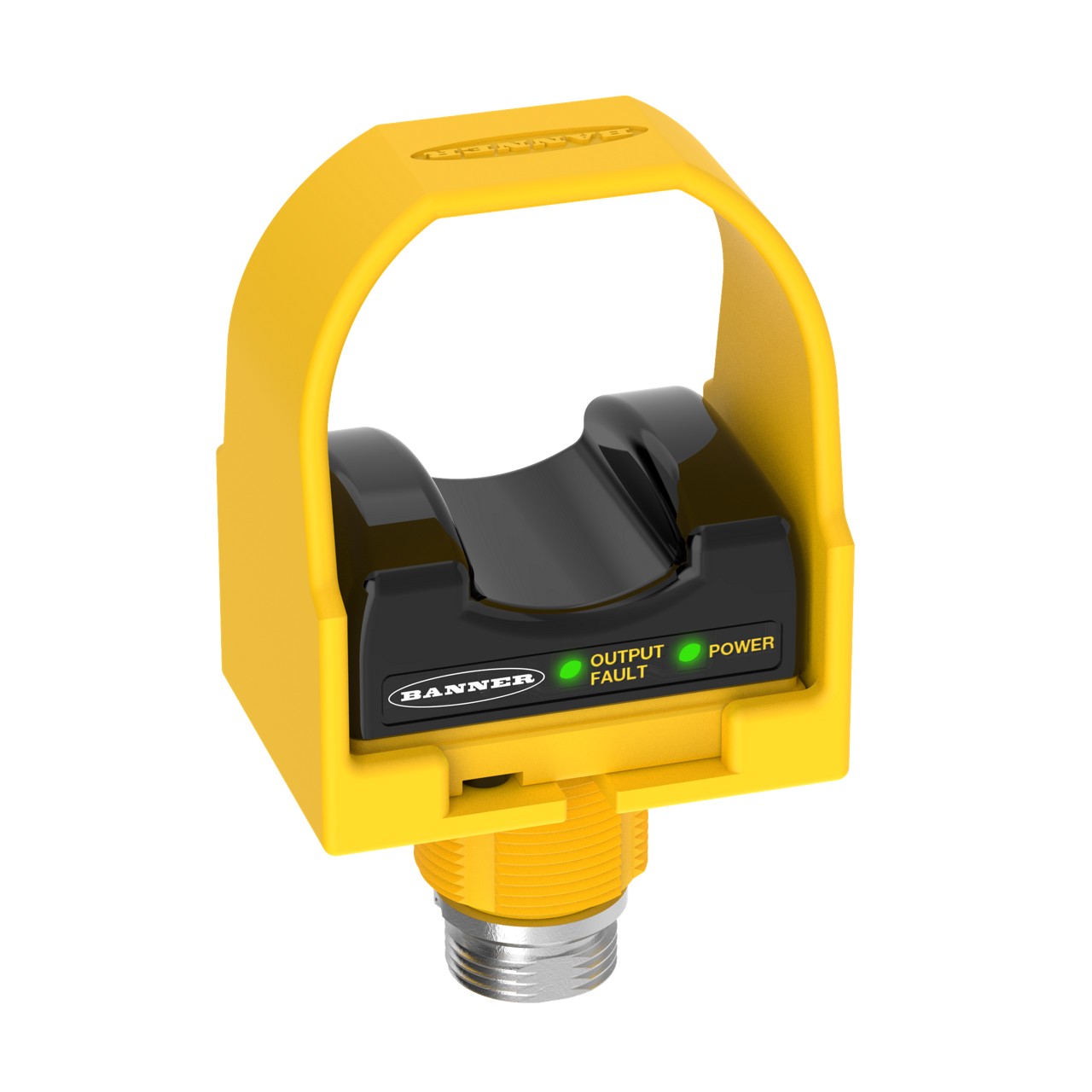

STBVR81Q
Product number: STBVR81Q
EAN number: 5705378381434
EAN number: 5705378381434
STB Series: Self-Checking Touch Button w/Yellow F.C.; Input: 20-30 V ac or dc; Upper Housing: Black Polyetherimide; Outputs: Two Independent and Complementary Relays; MINI-style Integral QD
Banner Engineering
Download specifications
| Name | Value |
|---|---|
| Power | DC |
| Non-Illuminated | Yes |
| Display | No |
| IP Rating | IP66 |
| Sensing Mode (General) | Single Point Optical |
| Housing Style | Base Mount - Saddle |
| Primary Housing Material | Thermoplastic Polyetherimide |
| Actuation | Yes |
| Activation Function | Optical |
| Mounting Thread | M30 x 1.5 |
| Product Size (mm) | Other |
| Connection | Integral QD |
| Quick Disconnect Type | 7/8 in. (Mini) |
| Max Current Color (mA) | 75 |
| Number of Input Pins/Conductors | 5 |
| Operation | Normally Open/Normally Closed |
| Supply Voltage | 20-30 V ac/dc |
| Output Type | Dry Contact |
| Max Output Response Time (ms) | 20 |
| Physical Dimensions (LxWxH or DxH mm) | 68.0 x 51.0 x 115.0 |
| Number of Beams | 1 |
| Environmental Rating | IP66 |
| NEMA Type and UL Type Rating | NEMA 1, 3, 4, 4X, 12, 13 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| High Temperature (up to 100° C) | 50 |
| Field Cover Color | Yellow |
| Primary Housing Color | Black |
| Button Operation | Momentary |
| Secondary Material | Thermoplastic |
| Feature: Audible | No |
| Feature: Quick Disconnect | Yes |
| Origin | MX |
| Order Quantity | 1 Each |
| Weight | .52 LB |
| HTS Code (US) | 8536.49.0050 |
| Country of Origin | MX |
| Lead Time (Business Days, updated weekly) | 30 |
