HF Y-Splitter
Product number: HF Y-SPLITTERV1
EAN number: 5705379140375
EAN number: 5705379140375

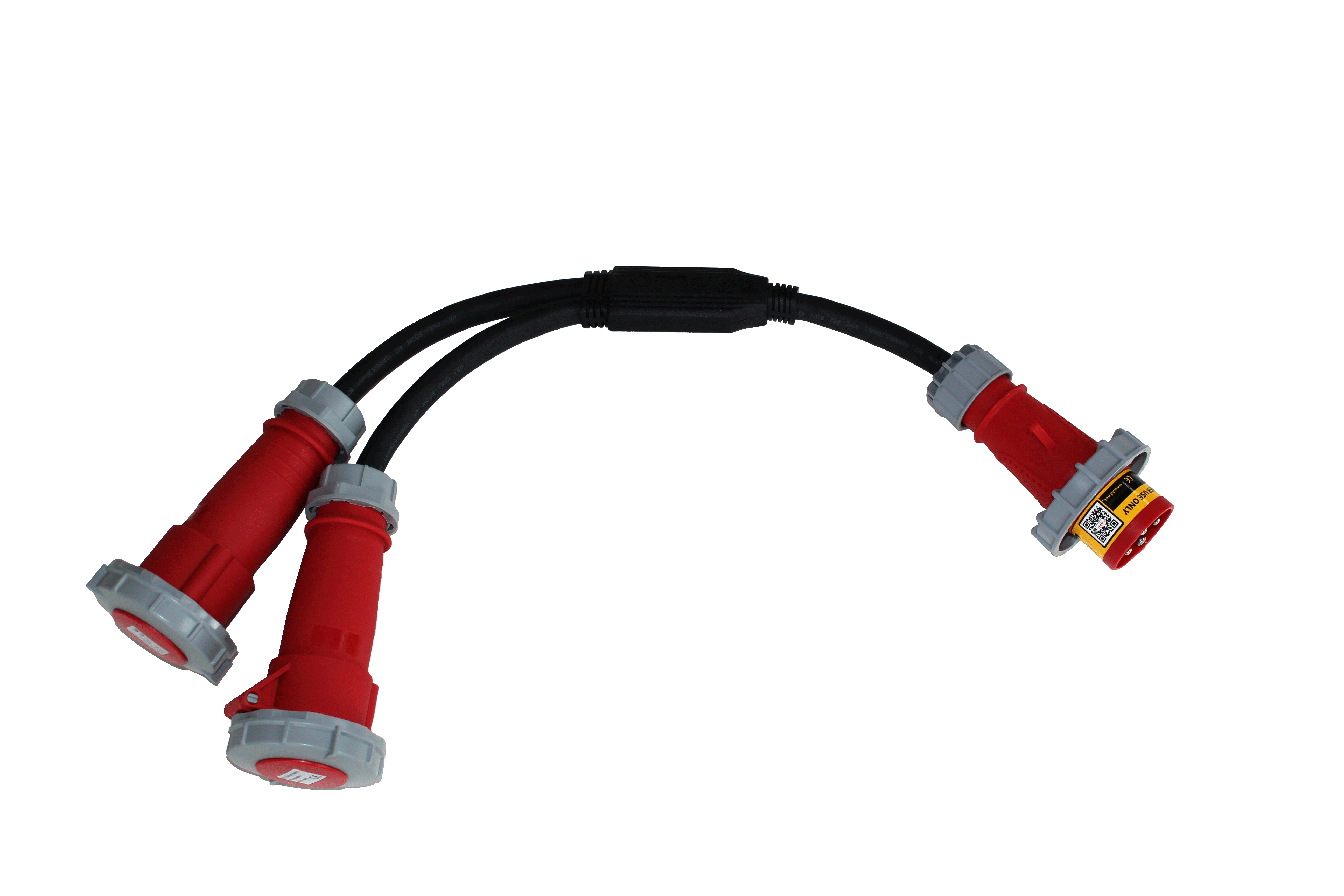

The HF Y-splitter makes is possible to connect 2 reefers to 1 power outlet in a fast and simple way. The Y-splitters has the well-known "HF twisting plug" and can easily be used in both 3H and 6H position making the Y-splitter ideal for use on ships as well as on trucks.
Download specifications
| Name | Value |
|---|---|
| Test Voltage | 2.5 KV for 5 min |
| Rated Voltage: | 600V |
| Rated Current: | 32A |
| Max. conductor temp.: | 90o C |
| Short circuit temp.: | 200o C |
| Pulling strength: | 600N |
| IP Rate: | IP 67 |
| Model: | SOOW UL Certified |
| Conductor: | 10AWG/4C tinned copper |
| Material: | Soft-annealed copper |
| Outer diameter: | 18.8 ± 0.4 |
| Min. bending radius: | 10D |
| Max. jacket temp.: | 90o C |
| Material: | CPE |
| Colour: | Black |
| Conductor colour code: | Red, Black, Brown, Yellow/Green |
