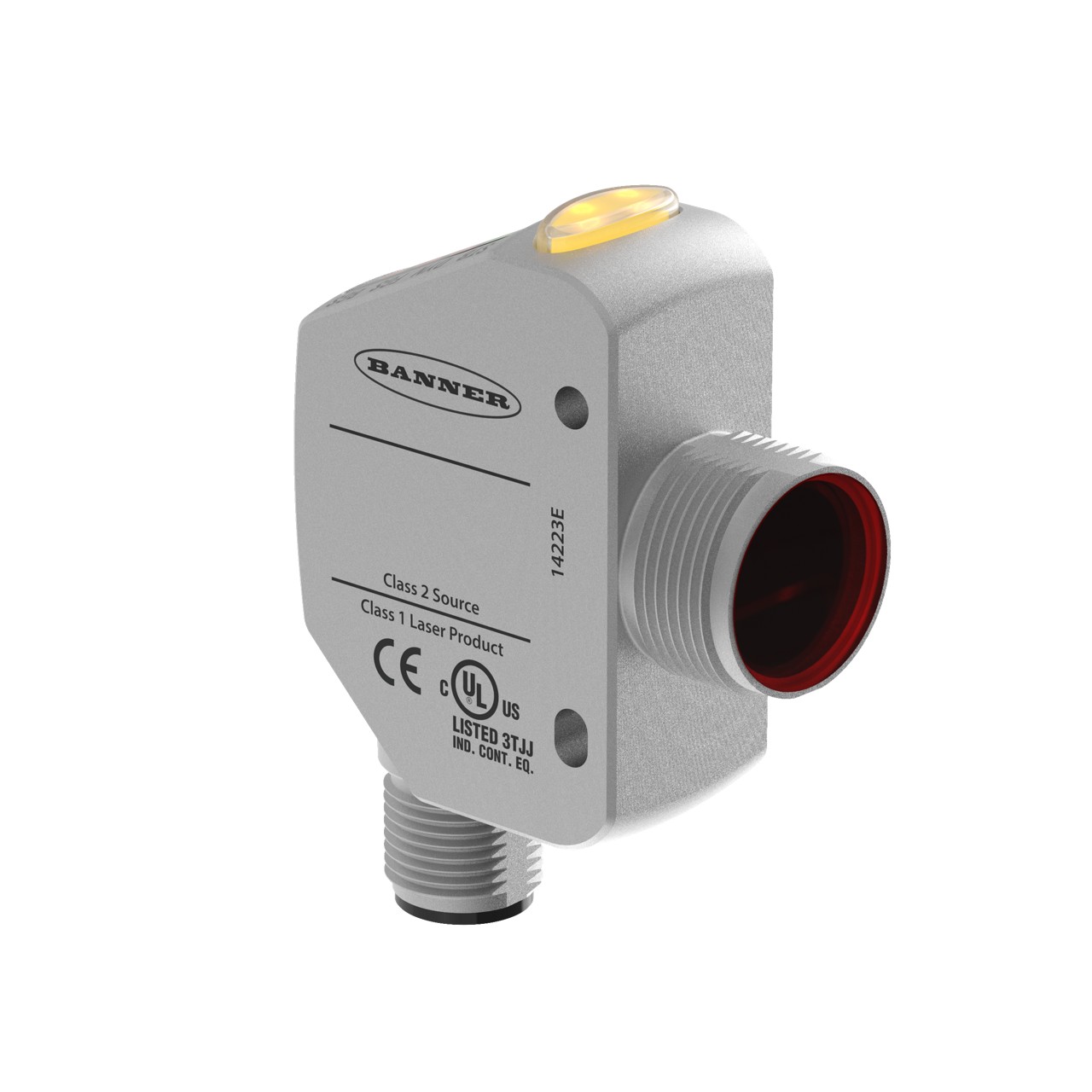

Q4XTBLAF100-Q8
Product number: Q4XTBLAF100Q8
EAN number: 5705379097396
EAN number: 5705379097396
Q4X Series: Laser Adjustable Field; Range: 100 mm; Input: 10-30 V dc; Outputs: Bipolar: 1 NPN; 1 PNP; 5-pin M12 Integral QD
Banner Engineering
Download specifications
| Name | Value |
|---|---|
| Power | DC |
| Sensing Beam | Visible Red Laser |
| IP Rating | IP67, IP68, IP69K |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Background/Foreground Suppression |
| Housing Style | Rectangular w/ Threaded Mount |
| Device Type | Sensor |
| Primary Housing Material | Stainless Steel |
| Laser Classification | Class 1 |
| Input Output | Discrete |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Max Sensing Distance (mm) | 100 |
| Minimum Sensing Distance (mm) | 25 |
| Power Supply | 10-30 V dc |
| Adjustments | Push Button; Remote Teach |
| Number of Pins | 5 |
| Discrete (Switched) Outputs | Bipolar (NPN & PNP) |
| Max Operating Temperature (°C) | 50 |
| Min Operating Temperature (°C) | -10 |
| Minimum Response Time (ms) | 1.5 |
| Barrel Thread | M18 |
| Laser Control | Yes |
| Max Ambient Light (Lux) | 5000 |
| Feature: Remote Teach | Yes |
| Feature: Washdown Rated | Yes |
| Feature: Clear Object Detection | Yes |
| Feature: Timing (Hold/Delay) | Yes |
| Feature: Ecolab Certified | Yes |
| Feature: Chemical Resistant | Yes |
| Feature: Quick Disconnect | Yes |
| Origin | US |
| Order Quantity | 1 Each |
| Weight | .36 LB |
| HTS Code (US) | 8541.41.0000 |
| Country of Origin | US |
| Lead Time (Business Days, updated weekly) | 20 |
