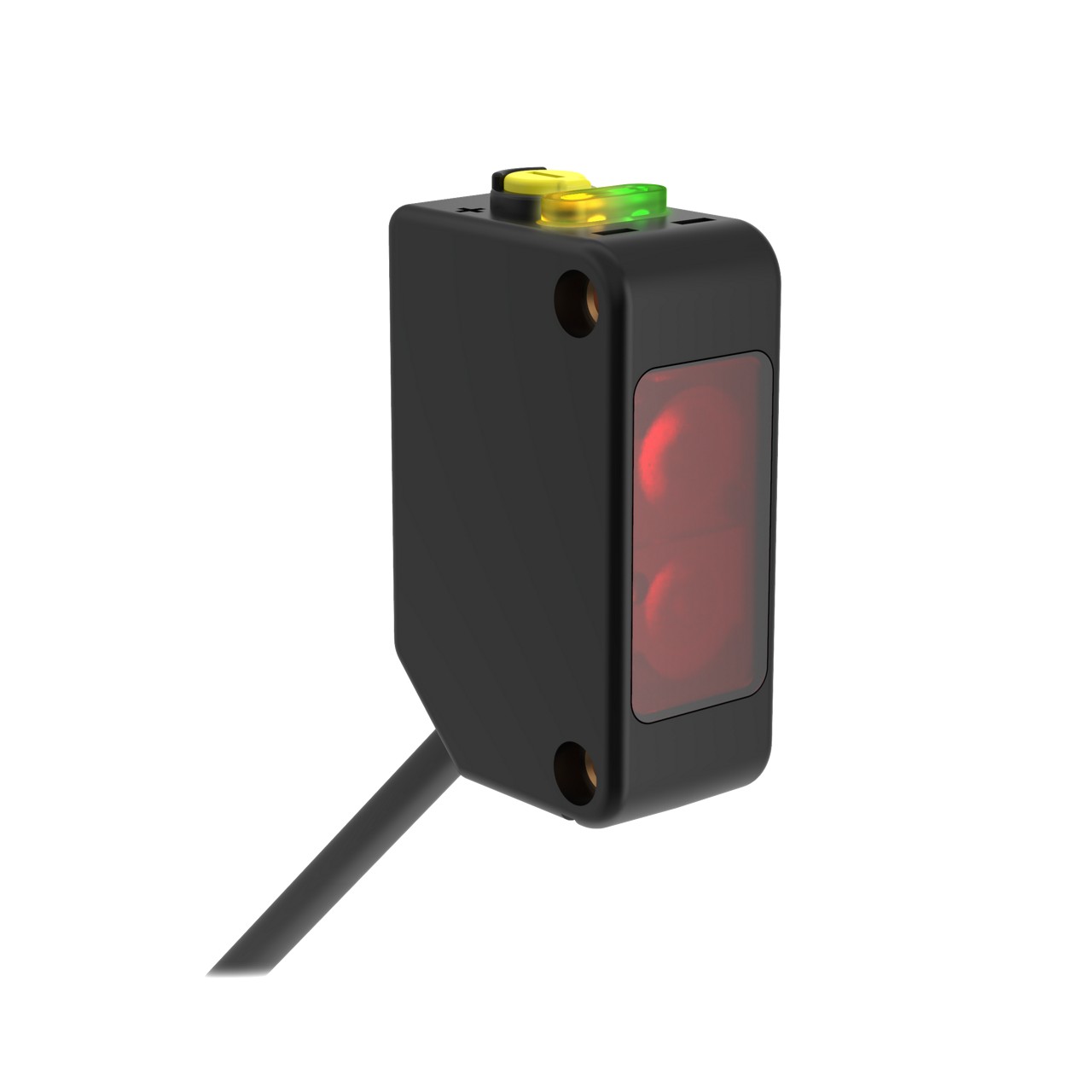

Q20PLPQ5
Product number: Q20PLPQ5
EAN number: 5705378708217
EAN number: 5705378708217
WORLD-BEAM Q20 Series: Polarized Retro; Range: 4 m; Input 10-30 V dc; Output: Complementary Solid-State PNP; 150 mm (6 in) M12 Pigtail QD
Banner Engineering
Download specifications
| Name | Value |
|---|---|
| IP Rating | IP67 |
| Cable Length (m) | 0.15 |
| Sensing Beam | Visible Red LED |
| Power | DC |
| Sensing Mode (General) | Retroreflective |
| Sensing Mode (Detailed) | Polarized |
| Housing Style | Rectangular |
| Primary Housing Material | Thermoplastic |
| Input Output | Discrete |
| Max Sensing Distance (mm) | 4000 |
| Outputs | PNP |
| Power Supply/Supply Voltage | 10-30 V dc |
| Connection | Pigtail QD |
| Quick Disconnect Type | M12 |
| Operation | Light/Dark Operate |
| Min Op. Temp. (°C) | -20 |
| Max Op. Temp. (°C) | 60 |
| Output response time (ms) | 0.8 |
| Special Feature: Intrinsically Safe | No |
| Special Feature: Remote Teach | No |
| Special Feature: Water Detection | No |
| Sensing Beam Wavelength | 645 |
| Delay at Power-up (ms) | 100 |
| Repeatability (µs) | 155 |
| Number of Pins | 4 |
| NEMA Rating | NEMA 6 |
| Max Op. Relative Humidity [%] | 95% @ 50°C |
| Lens Material | Acrylic |
| Adjustments | Potentiometer |
| Indicator | LEDs |
| Feature: Timing (Hold/Delay) | No |
| Feature: Audible | No |
| Feature: Quick Disconnect | Yes |
| Origin | MX |
| Order Quantity | 1 Each |
| Weight | .05 LB |
| HTS Code (US) | 8541.49.8000 |
| Country of Origin | MX |
| Lead Time (Business Days, updated weekly) | 63 |
