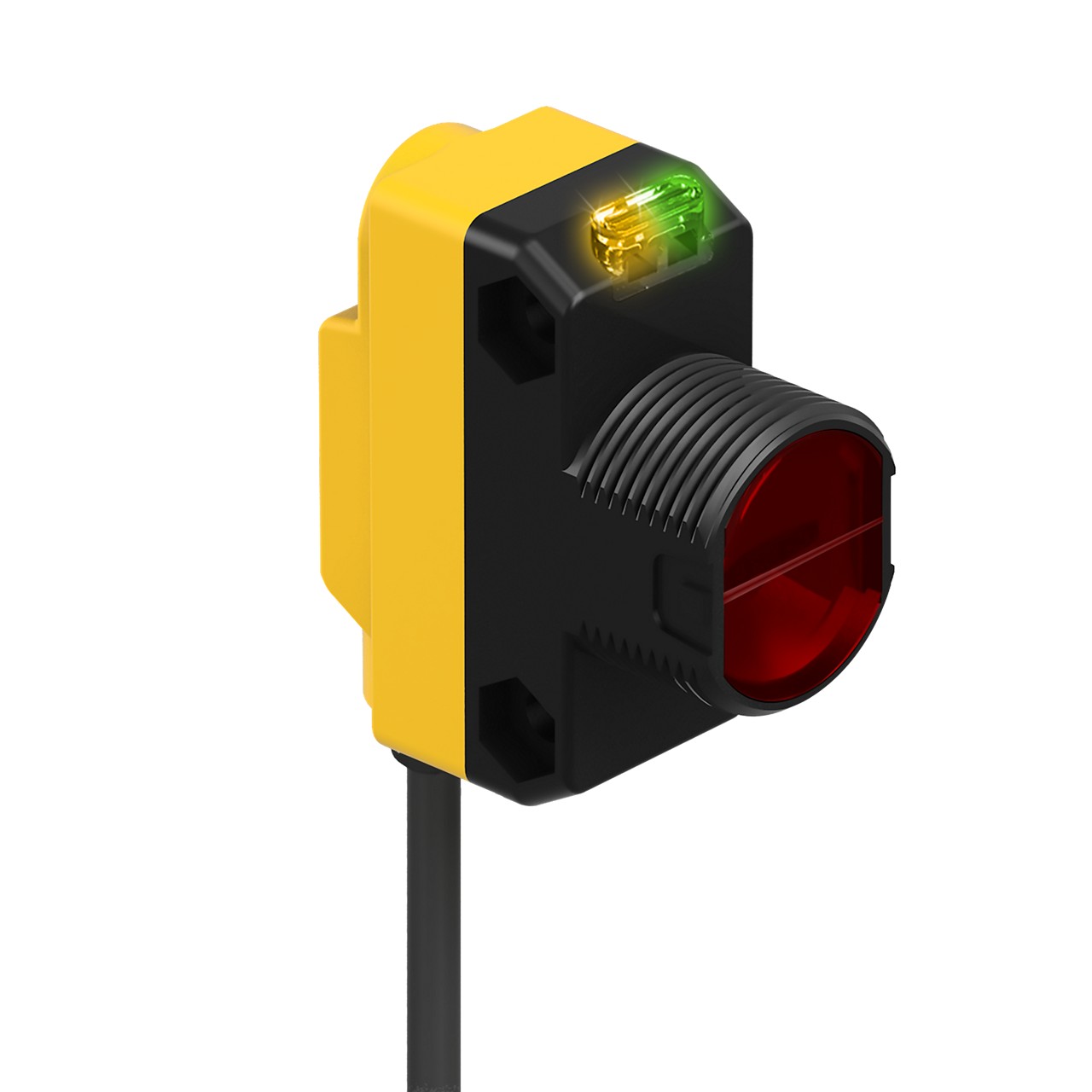

QS18VP6LLPQ5
Product number: QS18VP6LLPQ5
EAN number: 5705378767511
EAN number: 5705378767511
WORLD-BEAM QS18 LASER POLAR RETRO; Range: 0.1-10 m; Input: 10-30 V dc; Output: Complementary Solid-State PNP; 150 mm M12 Pigtail QD
Banner Engineering
Download specifications
| Name | Value |
|---|---|
| IP Rating | IP67 |
| Cable Length (m) | 0.15 |
| Sensing Beam | Visible Red Laser |
| Power | DC |
| Sensing Mode (General) | Retroreflective |
| Sensing Mode (Detailed) | Polarized |
| Housing Style | Rectangular w/M18 Mount |
| Primary Housing Material | ABS |
| Laser Classification | Class 1 |
| Small Visible Spot | Laser |
| Input Output | Discrete |
| Max Sensing Distance (mm) | 10000 |
| Outputs | PNP |
| Power Supply/Supply Voltage | 10-30 V dc |
| Connection | Pigtail QD |
| Quick Disconnect Type | M12 |
| Operation | Light/Dark Operate |
| Min Op. Temp. (°C) | -10 |
| Max Op. Temp. (°C) | 50 |
| Output response time (ms) | 0.7 |
| Sensing Beam Wavelength | 650 |
| Delay at Power-up (ms) | 200 |
| Repeatability (µs) | 130 |
| Number of Pins | 4 |
| NEMA Rating | NEMA 6 |
| Max Op. Relative Humidity [%] | 95% @ 50°C |
| Lens Material | Acrylic |
| Adjustments | Potentiometer |
| Barrel Diameter (mm) | 18 |
| Indicator | LEDs |
| Feature: Timing (Hold/Delay) | No |
| Feature: Audible | No |
| Feature: Quick Disconnect | Yes |
| Origin | MX |
| Order Quantity | 1 Each |
| Weight | .1 LB |
| HTS Code (US) | 8541.49.8000 |
| Country of Origin | MX |
| Lead Time (Business Days, updated weekly) | 33 |
