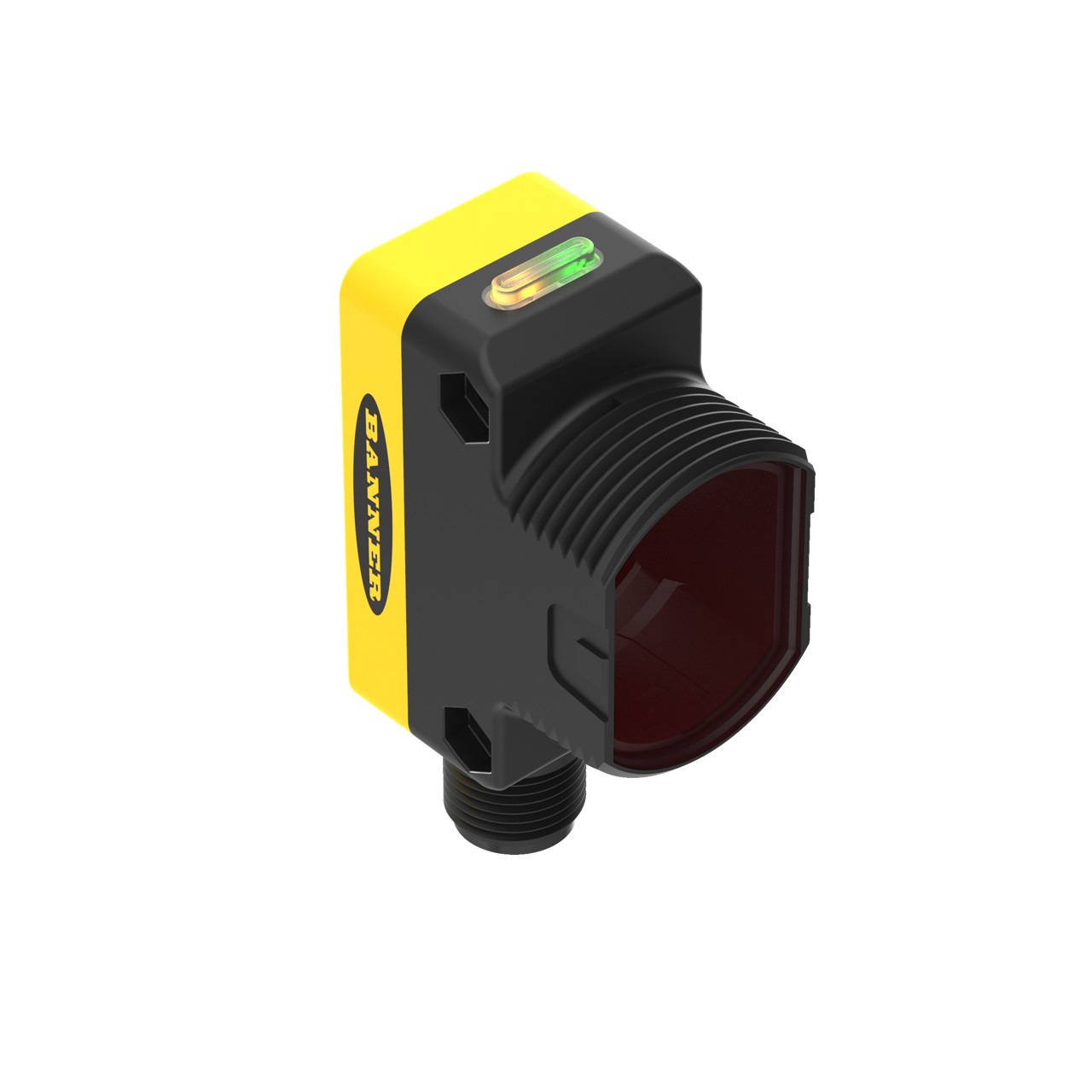

QS30FF200Q
Product number: QS30FF200Q
EAN number: 5705378724477
EAN number: 5705378724477
WORLD-BEAM QS30 Series: Fixed-Field; Range: 200 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 5-pin M12 Integral QD
Download specifications
| Name | Value |
|---|---|
| IP Rating | IP67 |
| Sensing Beam | Visible Red LED |
| Power | DC |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Background Suppression (Fixed) |
| Housing Style | Rectangular w/M30 Mount |
| Primary Housing Material | Thermoplastic |
| Input Output | Discrete |
| Max Sensing Distance (mm) | 200 |
| Outputs | Bipolar (NPN & PNP) |
| Power Supply/Supply Voltage | 10-30 V dc |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Operation | Light/Dark Operate |
| Min Op. Temp. (°C) | -20 |
| Max Op. Temp. (°C) | 70 |
| Output response time (ms) | 2 |
| Special Feature: Intrinsically Safe | No |
| Special Feature: Remote Teach | No |
| Special Feature: Water Detection | No |
| Sensing Beam Wavelength | 680 |
| Delay at Power-up (ms) | 100 |
| Repeatability (µs) | 500 |
| Number of Pins | 5 |
| NEMA Rating | NEMA 6 |
| Max Op. Relative Humidity [%] | 95% @ 50°C |
| Lens Material | Acrylic |
| Adjustments | N/A |
| Barrel Diameter (mm) | 30 |
| Indicator | LEDs |
| Feature: Timing (Hold/Delay) | No |
| Feature: Audible | No |
| Feature: Quick Disconnect | Yes |
| Origin | US |
| Order Quantity | 1 Each |
| Weight | .12 LB |
| HTS Code (US) | 8541.49.8000 |
| Country of Origin | US |
| Lead Time (Business Days, updated weekly) | 25 |
