T30SN6R
Product number: T30SN6R
EAN number: 5705378161616
EAN number: 5705378161616

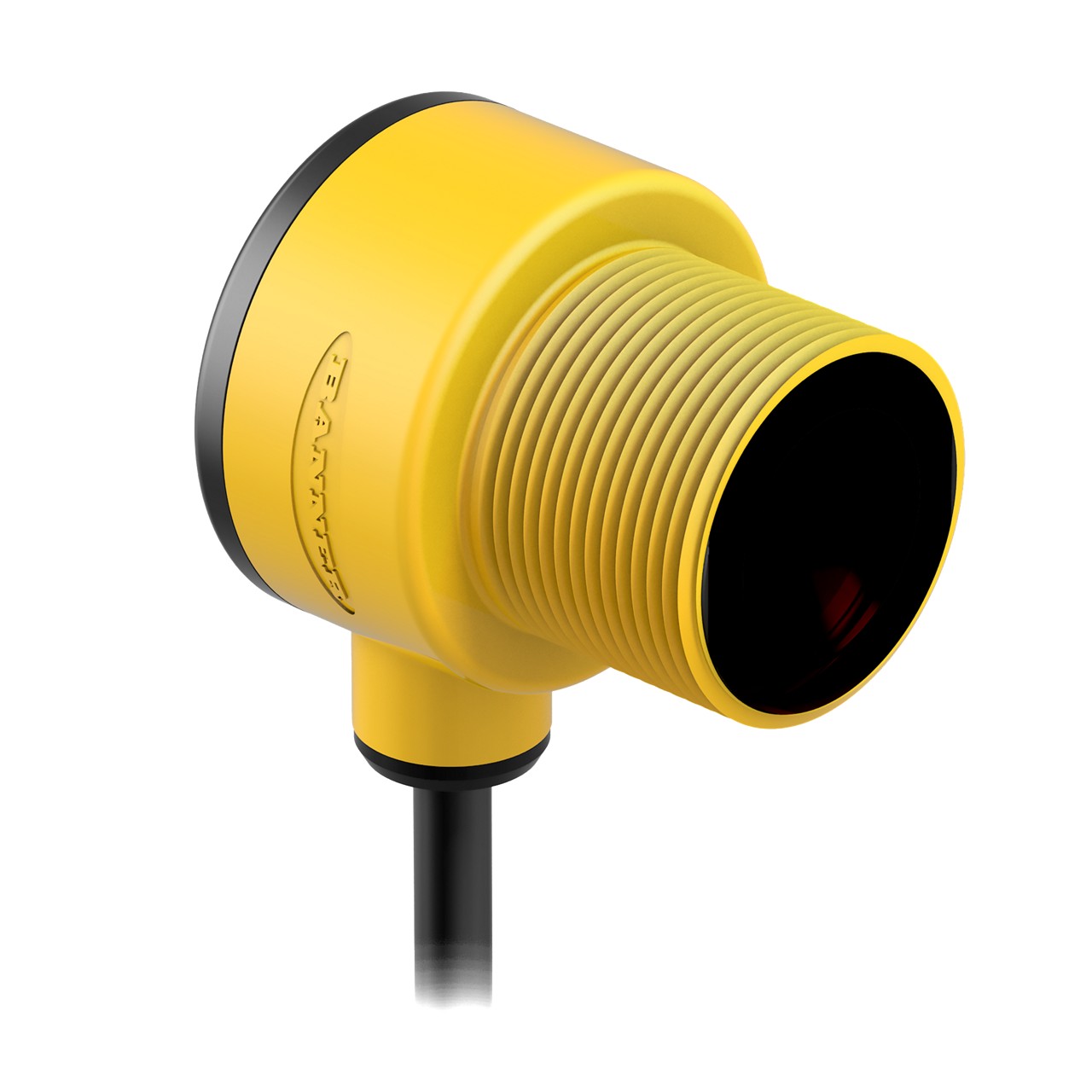

EZ-BEAM T30 Series: Receiver; Range: 60 m; Input: 10-30 V dc; Output: Complementary NPN; 2 m (6.5 ft) cable
Banner Engineering
Download specifications
| Name | Value |
|---|---|
| IP Rating | IP69K |
| Cable Length (m) | 2 |
| Sensing Beam | Infrared LED |
| Power | DC |
| Sensing Mode (General) | Opposed |
| Sensing Mode (Detailed) | Receiver |
| Housing Style | Barrel |
| Primary Housing Material | Thermoplastic |
| Input Output | Discrete |
| Max Sensing Distance (mm) | 60000 |
| Outputs | NPN |
| Power Supply/Supply Voltage | 10-30 V dc |
| Connection | Cable |
| Operation | Light/Dark Operate |
| Min Op. Temp. (°C) | -40 |
| Max Op. Temp. (°C) | 70 |
| Output response time (ms) | 3 ON/1.5 OFF |
| Special Feature: Intrinsically Safe | No |
| Special Feature: Remote Teach | No |
| Special Feature: Water Detection | No |
| Delay at Power-up (ms) | 100 |
| Repeatability (µs) | 375 |
| Number of Pins | 4 |
| NEMA Rating | NEMA 6P |
| Max Op. Relative Humidity [%] | 90% @ 50°C |
| Lens Material | Acrylic |
| Adjustments | N/A |
| Barrel Diameter (mm) | 30 |
| Indicator | LEDs |
| Opposed Mode Emitter/Receiver | Receiver |
| Feature: Washdown Rated | Yes |
| Feature: Timing (Hold/Delay) | No |
| Feature: Ecolab Certified | Yes |
| Feature: Encapsulated | Yes |
| Feature: Audible | No |
| Feature: Quick Disconnect | No |
| Feature: Health/ Marginal Signal Output | Yes |
| Origin | US |
| Order Quantity | 1 Each |
| Weight | .385 LB |
| HTS Code (US) | 8541.49.1050 |
| Country of Origin | US |
| Lead Time (Business Days, updated weekly) | 25 |
