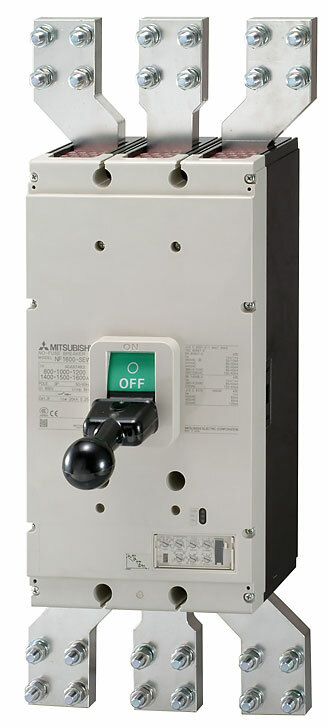

NF1600-SEW 3P 1600A
Product number: MEUL204814
EAN number: 5705379106838
EAN number: 5705379106838
NF1600-SEW 3P 1600A
10 STANDARD ITEM Circuit breaker 3pole. Ir = 800 - 1600A; Icu / Ics = 85 / 43kA at AC 440V
Download specifications
| Name | Value |
|---|---|
| BasicData | |
| MaterialDescription | NF1600-SEW 3P 1600A |
| ProductHierachy | IAN10151 |
| ProductSubgroup | WSS 3 - NF Body |
| ExternalMaterialGroup | 10 STANDARD ITEM |
| CommodityCode | 85362090 |
| OriginCountry | JP |
| ABCIndicator | A |
| PriceListTextEN | Circuit breaker 3pole. Ir = 800 - 1600A; Icu / Ics = 85 / 43kA at AC 440V |
| PriceListTextDE | Leistungsschalter 3polig. Ir = 800 - 1600A; Icu / Ics = 85 / 43kA bei AC 440V |
| DualUseList | |
| GrossWeight | 34.0 |
| WeightUnit | KG |
| Volume | 69.375 |
| VolumeUnit | CDM |
| BrutLength | 75.0 |
| BrutWidth | 37.0 |
| BrutHeight | 25.0 |
| DimensionUnit | CM |
| DimensionData | |
| NetWidth | 210 |
| NetDepth | 190 |
| NetHeight | 406 |
| NetWeight | 34,5 |
| EnvironmentData | |
| ReachLimitExceeded | NO |
| ReachSubstanceCASNumber | N/A |
| DangerousGoodsRegulations | NO |
| RoHSCompliance | NO |
| ProductSpecificationCharacteristics | |
| ClassGroup | FA-MCCB |
| Class | 100100901 |
| ClassDescription | FA-MCCB: Moulded-Case Circuit Breaker |
| MaterialCharacteristics | |
| Series | WS SERIES - MCCB |
| Type | NF-S TYPE |
| Rated Current (A) | 1600 |
| Rated Voltage (V) | 690 |
| Current Type | AC |
| Number of Poles | 3 |
| Breaking Capacity at 400V (kA) | 85 |
| Rated Current Sensibility (mA) | N/A |
| Pulsating Current Sensibility | N/A |
| Time Delay (s) | N/A |
