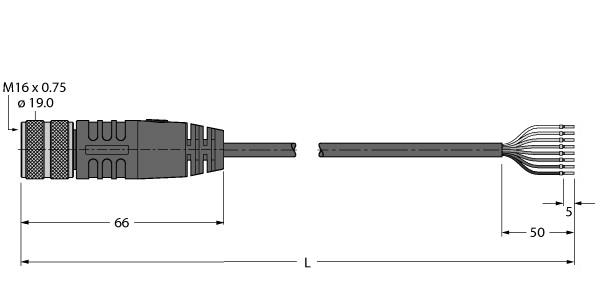

BKM14-E01-5/TEL
Product number:
Industrial Sensor Cable, PVC-Kabelmantel, M16 connector, female, straight, 14-pin, Sheath material: PVC, Sheath color: black, Flame-retardant (FT1), Approval: UL and CSA, RoHS-compliant, Protection class IP67, Cable length 5 m
Download specifications
| Name | Value |
|---|---|
| Number of poles | 14 |
| Type of electrical connection, field-sided | - MV |
| Type of plug-in contact, field sided | - MV |
| Positioning cable feed, field-sided | - MV |
| Type of electrical connection, box-sided | Other |
| Type of plug-in contact, box-sided | Female (bus) |
| Positioning cable feed, box-sided | Straight |
| Cable length | 5 Meter |
| Material of cable sheath | PVC |
| Halogen free | - MV |
| Colour cable sheath | Black Black |
| With LED indication | No |
| Screened | Yes |
| Type of cable | Multi-core |
| Vulcanize | - MV |
| Material contact body | CuZn |
| Material of contact surface | Au |
| Permitted cable outer temperature, fixed | -40, 105 Degrees celsius |
| Permitted cable outer temperature, in movement | - MV Degrees celsius |
| Rated current In | 3 Ampere |
| Nominal rated voltage | 300 Volt |
| Continuity resistor | - MV Milli-Ohm |
| Customs tarif #: | 85444290900 |
| UNIT: | Piece |
| GTIN | 4047101381993 |
