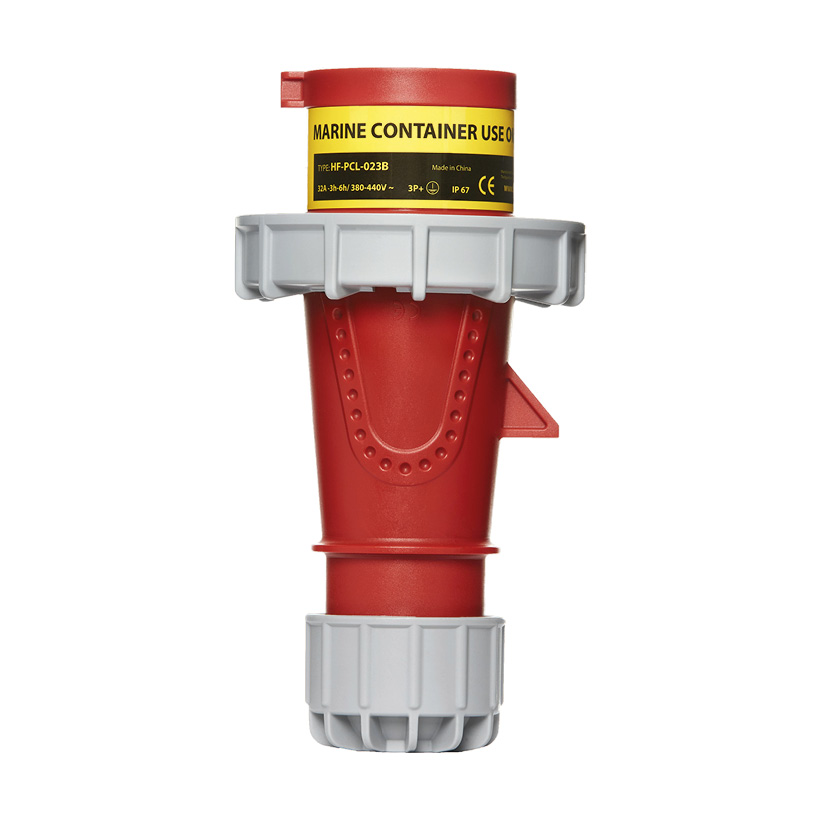

HF Marine Container Plug Interchangeable 3H/6H
Product number: HF-PCL023B
EAN number: 5705379222330
EAN number: 5705379222330
HF Marine Container Plug designed for Reefer Container use only.

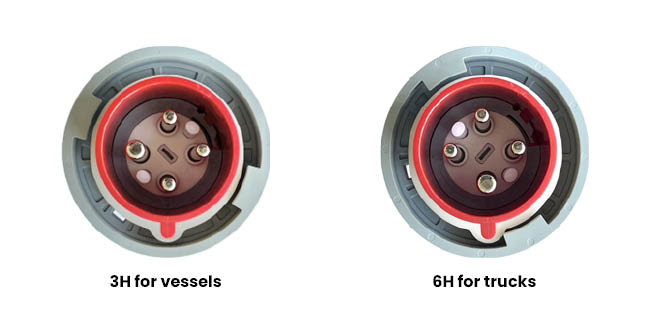

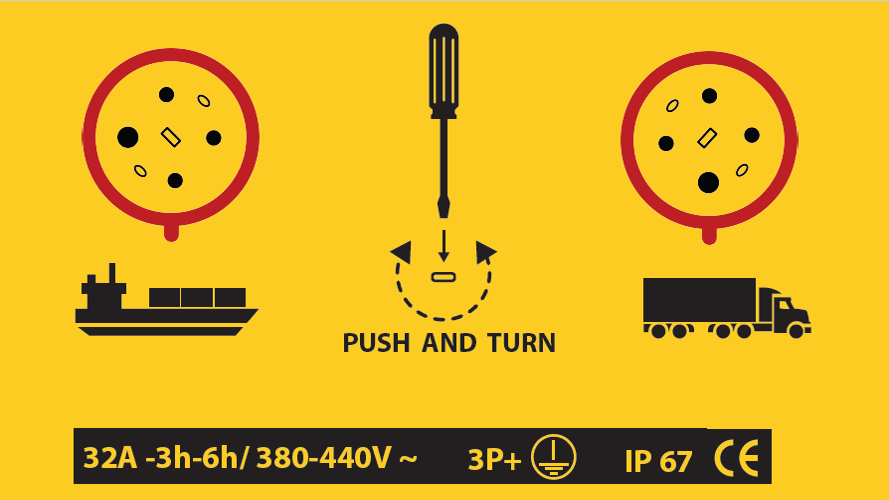

A turning mechanism makes it possible to use the same plug on the truck as well as on the vessel, without removing the plug’s safety “lug”. Safe and easy switch the plug between 3H and 6H using nothing but a screwdriver.
Download specifications
| Name | Value |
|---|---|
| Rated current: | 32A |
| Rated voltage: | AC 440V ～ |
| No. of poles: | 3P+ |
| Earth contact position: | 3H/6H |
| Protection degree: | IP67 |
| Apply to cable types: | 4G2, 5mm2 , 4G4mm2 , 4G6mm2 , AWG 11/4, AWG 10/4 |
| Apply to cable diameter: | 10.9mm. - 20.2mm. |
| Housing material: | Flame retardant PA6 |
| Contact: | Nickel plated brass |
| Package: | 10 pcs. in a carton box |
| Feature: | Able to switch from 3H to 6H by using a screw driver |
| Feature: | With build in wire protection terminals |
| Feature: | Screws head to be teared off at 1.5NM |
| Approvals: | CE / ROSH/ REACH |
