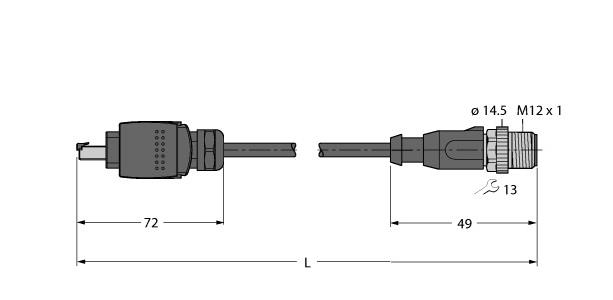

AIDA-GC-RSSD-4416-20M
Product number:
Industrial Ethernet Cable, PUR, Extension Cable According to AIDA, RJ45 connector acc. to IEC 60603-7, Ethernet cable: 4-pin, AWG 22, CAT 5E, Jacket material: PUR, Jacket color: green, Shield: Aluminum foil overlapped, tinned copper wire, Jacket diameter: 6.5 mm, Oil resistant acc. to IEC 60811-2-1 and UL13, Free from halogen acc. to IEC 60754, Flame-retardant acc. to IEC 60332-1-2 and UL2556 VW1, RoHS-compliant, AIDA-compliant, Protection class: IP65 and IP67, M12 male, straight
Download specifications
| Name | Value |
|---|---|
| Contact type | Pin |
| Diameter connector | - MV Millimeter |
| Thread size M | - MV Millimeter |
| Number of plug-in contacts | - MV |
| Type of housing | Straight |
| Rated current In | 3 Ampere |
| Ambient temperature | -40, 70 Degrees celsius |
| Nominal rated voltage | 48 Volt |
| Over voltage category | - MV |
| Pollution degree | - MV |
| Connectable conductor cross section fine-strand without cable end sleeve | - MV Square millimeter |
| Connectable conductor cross section fine-strand with cable end sleeve | - MV Square millimeter |
| Connectable conductor cross section solid-core | - MV Square millimeter |
| Connectable conductor cross section multi-wired | - MV Square millimeter |
| Type of electric connection | - MV |
| Material of contact surface | Gold |
| Material contact | Brass |
| Material insulation body | - MV |
| Material housing | Zinc |
| With interlocking device | - MV |
| Locking mechanism | - MV |
| Inflammability class of insulation material acc. with UL94 | - MV |
| With protective conductor | - MV |
| Operation temperature | - MV Degrees celsius |
| Degree of protection (IP), mounted | IP65/IP67 |
| Coding of M12-round connectors | - MV |
| Category for Ethernet cable | - MV |
| Customs tarif #: | 85444290900 |
| UNIT: | Piece |
| GTIN | 4047101580495 |
