BKWM14-E01-10/TEL

Product number:

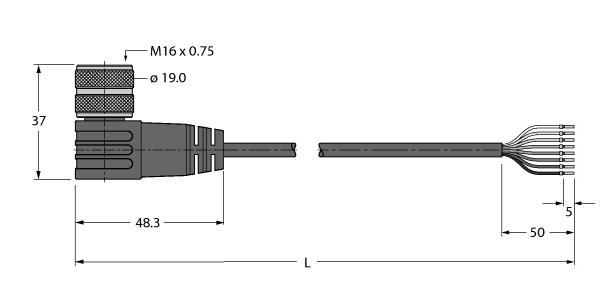

Industrial Sensor Cable, PVC-Kabelmantel, M16 connector, female, angled, 14-pin, Sheath material: PVC, Sheath color: black, Flame-retardant (FT1), Approval: UL and CSA, RoHS-compliant, Protection class IP67, Cable length 10 m

Download specifications
NameValue
Number of poles14
Type of electrical connection, field-sided- MV
Type of plug-in contact, field sided- MV
Positioning cable feed, field-sided- MV
Type of electrical connection, box-sidedOther
Type of plug-in contact, box-sidedFemale (bus)
Positioning cable feed, box-sidedAngled
Cable length10 Meter
Material of cable sheathPVC
Halogen free- MV
Colour cable sheathBlack Black
With LED indicationNo
ScreenedYes
Type of cableMulti-core
Vulcanize- MV
Material contact bodyCuZn
Material of contact surfaceAu
Permitted cable outer temperature, fixed-40, 105 Degrees celsius
Permitted cable outer temperature, in movement- MV Degrees celsius
Rated current In3 Ampere
Nominal rated voltage300 Volt
Continuity resistor- MV Milli-Ohm
Customs tarif #:85444290900
UNIT:Piece
GTIN4047101382143
