Product number:

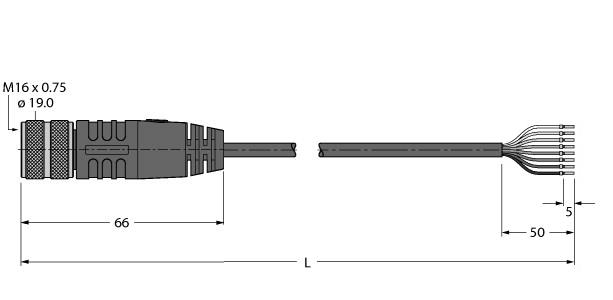

Actuator and sensor cable, Connection Cable, ‌​‌​​​‌‍​‌‌‌‌‍‍‍‍​‌‌‍​‌​‌‌​‌​‍‌‌‍‍‌‍‍‍‍‌‌M16 coupling, straight, 14-pin, ‌​‍‍‌‌​‌‌‌​‌‌‍‍‌​​‍‌‍​‍​‌​‍​‍‍‌‍‍​‌​‌​‍‌‌Jacket material: TPU, ‌​‍‍‌‌​‌‌‌​‌‌‍‍‌​​‍‌‍​‍​‌​‍​‍‍‌‍‍​‌​‌​‍‌‌Jacket color: black, ‌‌‌‌​​‌​‌‍‍​‍‍​‌​‌​‍‌‌​‌​‌​‍​‌​​​​‌‌‌‌‍‍​Flame retardant (FT1), ‌​‌​‌‌‍‌‍​‍‍‍​​‌​​‍​‌​‍​​​​‌​‍​‌‍​‍‍‌‍​‌‌Approval: UL and CSA, ‌​‍‍‌‌​‌‌‌​‌‌‍‍‌​​‍‌‍​‍​‌​‍​‍‍‌‍‍​‌​‌​‍‌‌RoHS-compliant, ‍​​‌‍‍‍​‍‌​‍‍‌​‍‍‍‌‍​‍‍‍​​​‍​‍‍‍‌​​‌‍​‍‌Protection type IP67, Cable length 5 m

Download specifications
Number of poles14
Type of electrical connection, field-sided- MV
Type of plug-in contact, field sided- MV
Positioning cable feed, field-sided- MV
Type of electrical connection, box-sidedOther
Type of plug-in contact, box-sidedFemale (bus)
Positioning cable feed, box-sidedStraight
Cable length5 Meter
Material of cable sheathPUR (Polyurethane)
Halogen free- MV
Colour cable sheathBlack Black
With LED indicationNo
Type of cableMulti-core
Vulcanize- MV
Material contact bodyCuZn
Material of contact surfaceAu
Permitted cable outer temperature, fixed-40, 90 Degrees celsius
Permitted cable outer temperature, in movement- MV Degrees celsius
Rated current In3 Ampere
Nominal rated voltage300 Volt
Continuity resistor- MV Milli-Ohm
Customs tarif #:85444290900
