Product number:

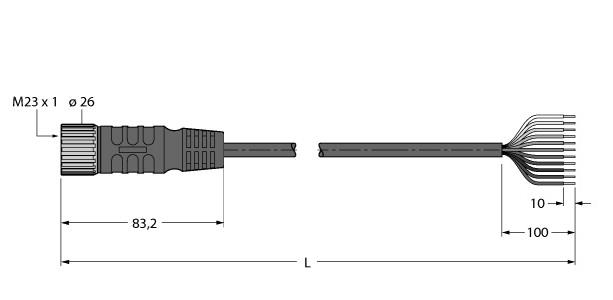

Supply Cable for Multiple Passive Junction Box, PUR, Connection Cable, M23 female connector, straight, 19-pin (11 assigned), Jacket material: PUR, Jacket color: black, Flame retardant acc. to FT1, Free from halogen, silicone and PVC, Particularly resistant to abrasion, RoHS-compliant, Protection class IP67, Cable length 5 m

Download specifications
Number of poles19
Type of electrical connection, field-sided- MV
Type of plug-in contact, field sided- MV
Positioning cable feed, field-sided- MV
Type of electrical connection, box-sidedOther
Type of plug-in contact, box-sidedFemale (bus)
Positioning cable feed, box-sidedStraight
Cable length5 Meter
Material of cable sheathPUR (Polyurethane)
Halogen free- MV
Colour cable sheathBlack Black
With LED indicationNo
Type of cableMulti-core
Vulcanize- MV
Material contact bodyCuZn
Material of contact surfaceAu
Permitted cable outer temperature, fixed-40, 80 Degrees celsius
Permitted cable outer temperature, in movement- MV Degrees celsius
Rated current In2 Ampere
Nominal rated voltage150 Volt
Continuity resistor- MV Milli-Ohm
Customs tarif #:85444290900
