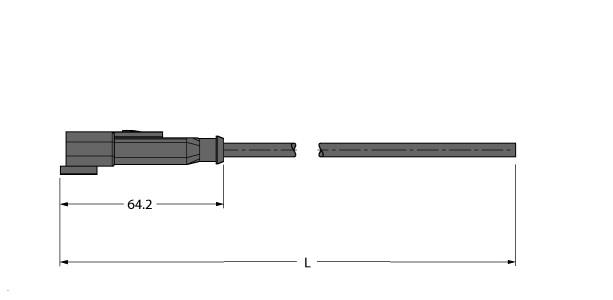

DT04-2P-S-5/TXL
Product number:
Deutsch Connector, Connection Cable, Deutsch connector DT04, straight, 2-pin, With protective circuitry (suppressor diode), With LED (yellow, 360° visible), Jacket material: TPE-U (PUR), Jacket color: black, similar to RAL 9005, Qualified for drag chain use, Flame-retardant acc. to cULus 20549, Halogen-free acc. DIN VDE 0472 part 815, Approval: cULus, RoHS-compliant, Protection classes IP67/IP69K, Cable length 5 m
Download specifications
Name | Value |
---|---|
Number of poles | 2 |
Type of electrical connection, field-sided | - MV |
Type of plug-in contact, field sided | - MV |
Positioning cable feed, field-sided | - MV |
Type of electrical connection, box-sided | Other |
Type of plug-in contact, box-sided | Male (plug) |
Positioning cable feed, box-sided | Straight |
Cable length | 5 Meter |
Material of cable sheath | PUR (Polyurethane) |
Halogen free | - MV |
Colour cable sheath | Black Black |
With LED indication | Yes |
Screened | Yes |
Type of cable | Multi-core |
Vulcanize | - MV |
Material contact body | CuZn |
Material of contact surface | Other |
Permitted cable outer temperature, fixed | -40, 80 Degrees celsius |
Permitted cable outer temperature, in movement | -25, 80 Degrees celsius |
Rated current In | 8 Ampere |
Nominal rated voltage | 24 Volt |
Continuity resistor | - MV Milli-Ohm |
Customs tarif #: | 85444290900 |
UNIT: | Piece |
GTIN | 4047101435948 |
