EC-FK4.5-0.5/16
Product number:

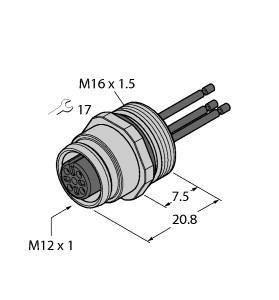

Accessories for actuator/sensor cables, female flange with strands, front-mounted, M12 × 1 female receptacle, Protection class IP67, Front panel mounting, Connected via stranded wires, Cable length 0.5 m
Download specifications
| Name | Value |
|---|---|
| Number of poles | 5 |
| Type of electrical connection, outer side | M12 |
| Type of electrical connection, inner side | Wire |
| Type of plug-in contact, outer side | Female (bus) |
| Type of plug-in contact, inner side | - MV |
| With thread | - MV |
| Wire length connecting cable | 500 Millimeter |
| Customs tarif #: | 85444290900 |
| UNIT: | Piece |
| GTIN | 4047101367195 |
