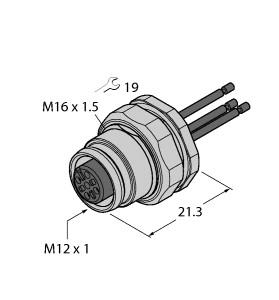

EC-FKFDE8-1/16
Product number:
Accessories for Actuator/Sensor Cables, female flange with strands, rear-mounted, M12 × 1 female receptacle, Protection class IP67, Stainless steel receptacle housing, Rear-mounted, Connected via stranded wires
Download specifications
| Name | Value |
|---|---|
| Number of poles | 8 |
| Type of electrical connection, outer side | M12 |
| Type of electrical connection, inner side | Wire |
| Type of plug-in contact, outer side | Female (bus) |
| Type of plug-in contact, inner side | - MV |
| With thread | - MV |
| Wire length connecting cable | 1000 Millimeter |
| Customs tarif #: | 85444290900 |
| UNIT: | Piece |
| GTIN | 4047101382983 |
