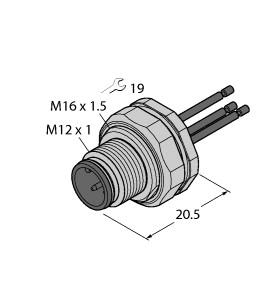

EC-FSFDE4.5-0.5/16
Product number:
Accessories for actuator/sensor cables, male flange with strands, rear-mounted, M12 × 1 male receptacle, Protection class IP67, Stainless steel receptacle housing, Rear-mounted, Connected via stranded wires, Cable length 0.5 m
Download specifications
Name | Value |
---|---|
Number of poles | 5 |
Type of electrical connection, outer side | M12 |
Type of electrical connection, inner side | Wire |
Type of plug-in contact, outer side | - MV |
Type of plug-in contact, inner side | - MV |
With thread | - MV |
Wire length connecting cable | 500 Millimeter |
Customs tarif #: | 85444290900 |
UNIT: | Piece |
GTIN | 4047101367072 |
