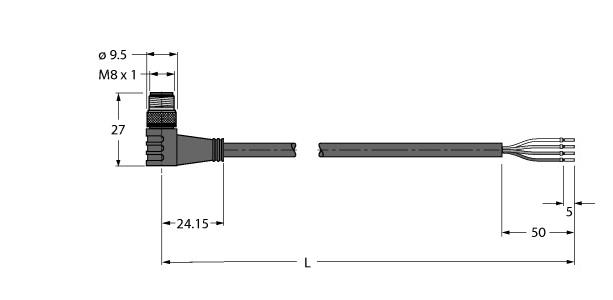

HT-SWSP4-5/S2430
Product number:
High-Temperature Resistant Actuator and Sensor Cable, Connection Cable, M8 male connector, angled, 4-pin, Cable length: 5.0 m, Sheath material: PTFE, Sheath color: white, Flame-retardant, Resistant to welding sparks, Resistant to chemicals, UV radiation and oils, Resistant to acids and alkaline solutions, LABS free, Resistant to microbes and hydrolysis, Cold and heat-flexible, RoHS-compliant, Protection class IP65, Temperature range of the cable: -190°C…260°C
Download specifications
Name | Value |
---|---|
Number of poles | 4 |
Type of electrical connection, field-sided | - MV |
Type of plug-in contact, field sided | - MV |
Positioning cable feed, field-sided | - MV |
Type of electrical connection, box-sided | M8 |
Type of plug-in contact, box-sided | Male (plug) |
Positioning cable feed, box-sided | Angled |
Cable length | 5 Meter |
Material of cable sheath | Other |
Halogen free | - MV |
Colour cable sheath | White White |
With LED indication | No |
Screened | Yes |
Type of cable | Multi-core |
Vulcanize | - MV |
Material contact body | CuZn |
Material of contact surface | Au |
Permitted cable outer temperature, fixed | -20, 150 Degrees celsius |
Permitted cable outer temperature, in movement | - MV Degrees celsius |
Rated current In | 4 Ampere |
Nominal rated voltage | 250 Volt |
Continuity resistor | - MV Milli-Ohm |
Customs tarif #: | 85444290900 |
UNIT: | Piece |
GTIN | 4047106005054 |
