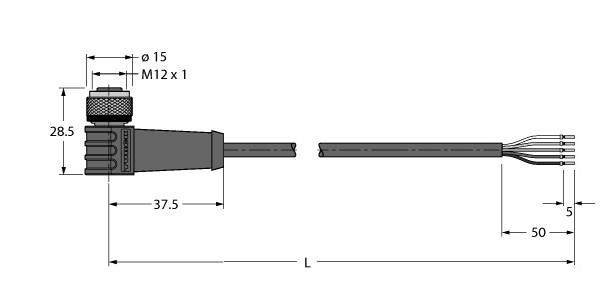

HT-WWAK4.5-10/S2430

Product number:
High-Temperature Resistant Actuator and Sensor Cable, Connection Cable, M12 female connector, angled, 5-pin, Cable length: 10 m, Sheath material: PTFE, Sheath color: white, Flame-retardant, Resistant to welding sparks, Resistant to chemicals, UV radiation and oils, Resistant to acids and alkaline solutions, LABS free, Resistant to microbes and hydrolysis, Cold and heat-flexible, RoHS-compliant, Protection class IP65, Temperature range of the cable: -190°C…260°C

Download specifications
NameValue
Number of poles5
Type of electrical connection, field-sided- MV
Type of plug-in contact, field sided- MV
Positioning cable feed, field-sided- MV
Type of electrical connection, box-sidedM12
Type of plug-in contact, box-sidedFemale (bus)
Positioning cable feed, box-sidedAngled
Cable length10 Meter
Material of cable sheathOther
Halogen free- MV
Colour cable sheathWhite White
With LED indicationNo
ScreenedYes
Type of cableMulti-core
Vulcanize- MV
Material contact bodyCuZn
Material of contact surfaceAu
Permitted cable outer temperature, fixed-20, 150 Degrees celsius
Permitted cable outer temperature, in movement- MV Degrees celsius
Rated current In4 Ampere
Nominal rated voltage60 Volt
Continuity resistor- MV Milli-Ohm
Customs tarif #:85444290900
UNIT:Piece
GTIN4047106146443
