RJ45S-RJ45S-8814-20M
Product number:

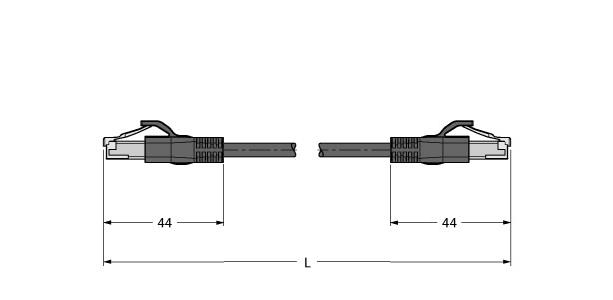

Industrial Ethernet Cable, Connection Cable, RJ45 male connector, straight, 8-pin, Cable length: 20 m, RJ45 male connector, straight, 8-pin
Download specifications
| Name | Value |
|---|---|
| Contact type | Pin |
| Diameter connector | - MV Millimeter |
| Thread size M | - MV Millimeter |
| Number of plug-in contacts | - MV |
| Type of housing | Straight |
| Rated current In | 0.5 Ampere |
| Ambient temperature | -40, 80 Degrees celsius |
| Nominal rated voltage | 48 Volt |
| Over voltage category | - MV |
| Pollution degree | 3 |
| Connectable conductor cross section fine-strand without cable end sleeve | - MV Square millimeter |
| Connectable conductor cross section fine-strand with cable end sleeve | - MV Square millimeter |
| Connectable conductor cross section solid-core | - MV Square millimeter |
| Connectable conductor cross section multi-wired | - MV Square millimeter |
| Type of electric connection | - MV |
| Material of contact surface | Gold |
| Material contact | Brass |
| Material insulation body | Thermoplastic |
| Material housing | Plastic |
| With interlocking device | - MV |
| Locking mechanism | - MV |
| Inflammability class of insulation material acc. with UL94 | - MV |
| With protective conductor | - MV |
| Operation temperature | - MV Degrees celsius |
| Degree of protection (IP), mounted | IP20 |
| Coding of M12-round connectors | - MV |
| Category for Ethernet cable | - MV |
| Customs tarif #: | 85444290900 |
| UNIT: | Piece |
| GTIN | 4047101447439 |
