TSS-4S-A-10/TXL
Product number:

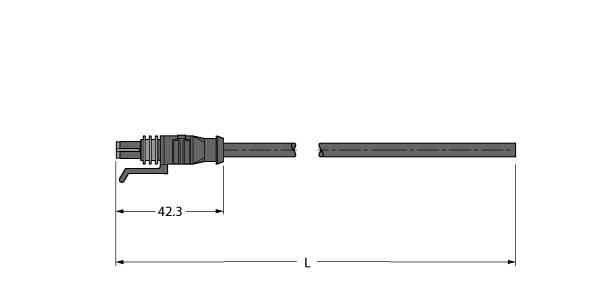

Superseal Connector, Connection Cable, Superseal connector, female, straight, 4-pin, Jacket material: TPE-U (PUR), Jacket color: black, similar to RAL 9005, Qualified for drag chain use, Flame-retardant acc. to cULus 20549, Halogen-free acc. DIN VDE 0472 part 815, Approval: cULus, RoHS-compliant, Protection classes IP67/IP69K, Cable length 10 m
Download specifications
Name | Value |
---|---|
Number of poles | 4 |
Type of electrical connection, field-sided | - MV |
Type of plug-in contact, field sided | - MV |
Positioning cable feed, field-sided | - MV |
Type of electrical connection, box-sided | Other |
Type of plug-in contact, box-sided | Female (bus) |
Positioning cable feed, box-sided | Straight |
Cable length | 10 Meter |
Material of cable sheath | PUR (Polyurethane) |
Halogen free | - MV |
Colour cable sheath | Black Black |
With LED indication | No |
Screened | Yes |
Type of cable | Multi-core |
Vulcanize | - MV |
Material contact body | CuSn |
Material of contact surface | Sn |
Permitted cable outer temperature, fixed | -40, 80 Degrees celsius |
Permitted cable outer temperature, in movement | -25, 80 Degrees celsius |
Rated current In | 7 Ampere |
Nominal rated voltage | 24 Volt |
Continuity resistor | - MV Milli-Ohm |
Customs tarif #: | 85444290900 |
UNIT: | Piece |
GTIN | 4047101439014 |
