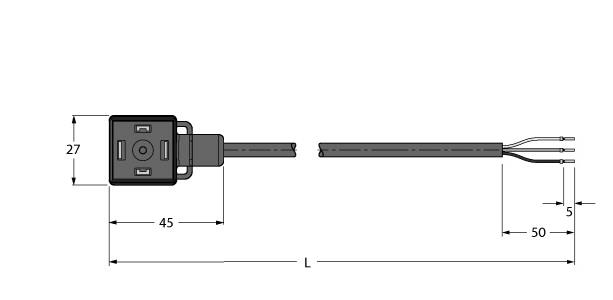

VAS22-L80E-10/TEL

Product number:
Valve connector A type, Connection Cable, Cable length: 10 m, Sheath material: PVC, Sheath color: black, Resistant to chemicals and oils, Flame retardant, Resistant to acids and alkaline solutions, Resistant to microbes and hydrolysis, LABS-free

Download specifications
NameValue
Number of poles- MV
Type of electrical connection, field-sided- MV
Type of plug-in contact, field sided- MV
Positioning cable feed, field-sided- MV
Type of electrical connection, box-sidedOther
Type of plug-in contact, box-sidedMale (plug)
Positioning cable feed, box-sided- MV
Cable length10 Meter
Material of cable sheathPVC
Halogen free- MV
Colour cable sheathBlack Black
With LED indicationNo
ScreenedYes
Type of cableMulti-core
Vulcanize- MV
Material contact bodyCuSn
Material of contact surfaceAg
Permitted cable outer temperature, fixed-40, 105 Degrees celsius
Permitted cable outer temperature, in movement0, 80 Degrees celsius
Rated current In4 Ampere
Nominal rated voltage- MV Volt
Continuity resistor- MV Milli-Ohm
Customs tarif #:85444290900
UNIT:Piece
GTIN4047101373912
