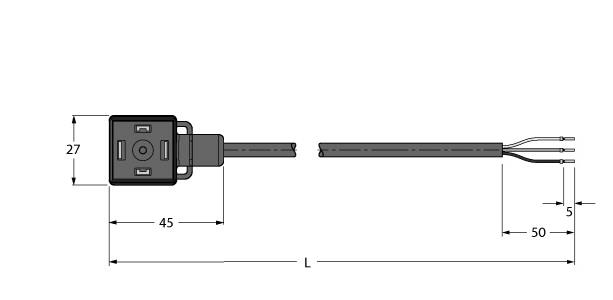

VAS22-L80E-2/TEL
Product number:
Valve connector A type, Connection Cable, Cable length: 2.0 m, Sheath material: PVC, Sheath color: black, Resistant to chemicals and oils, Flame retardant, Resistant to acids and alkaline solutions, Resistant to microbes and hydrolysis, LABS-free
Download specifications
| Name | Value |
|---|---|
| Number of poles | - MV |
| Type of electrical connection, field-sided | - MV |
| Type of plug-in contact, field sided | - MV |
| Positioning cable feed, field-sided | - MV |
| Type of electrical connection, box-sided | Other |
| Type of plug-in contact, box-sided | Male (plug) |
| Positioning cable feed, box-sided | - MV |
| Cable length | 2 Meter |
| Material of cable sheath | PVC |
| Halogen free | - MV |
| Colour cable sheath | Black Black |
| With LED indication | No |
| Screened | Yes |
| Type of cable | Multi-core |
| Vulcanize | - MV |
| Material contact body | CuSn |
| Material of contact surface | Ag |
| Permitted cable outer temperature, fixed | -40, 105 Degrees celsius |
| Permitted cable outer temperature, in movement | 0, 80 Degrees celsius |
| Rated current In | 4 Ampere |
| Nominal rated voltage | - MV Volt |
| Continuity resistor | - MV Milli-Ohm |
| Customs tarif #: | 85444290900 |
| UNIT: | Piece |
| GTIN | 4047101373899 |
