VBRK4.4-2PSW3M-0.3/0.3/TXL
Product number:

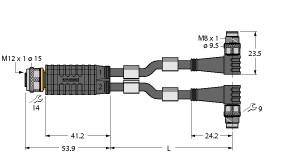

2-port Junction Systems, Y-Splitter with Cable, Female M12 × 1 - 2x Male M8 × 1, Jacket material: PUR, Jacket color: black, Suitable for drag chain use, Resistant to chemicals, UV radiation and oils, Flame-retardant (FT2 in accordance with UL 1581, IEC 60332-2-2), Free from halogen, silicone, PVC and LABS, Particularly resistant to abrasion, RoHS-compliant, Protection class: IP67, Cable length: 0.3/0.3 m, 4/3-pin
Download specifications
Name | Value |
---|---|
Type of branch for trunk line | - MV |
Type of connector for trunk line | - MV |
Connection type hood version | - MV |
Connectable conductor cross section fine-strand without cable end sl (hood vers) | - MV Square millimeter |
Connectable conductor cross section fine-strand with cable end sl. (hood vers.) | - MV Square millimeter |
Connectable conductor cross section solid-core (hood version) | - MV Square millimeter |
Connectable conductor cross section stranded (hood version) | - MV Square millimeter |
Core cross section finished cable | 0.34 Square millimeter |
Cable screw gland for cable outer diameter | - MV Millimeter |
Length of the preassembled cable | 0.3 Meter |
Cable length configurable | - MV |
Number of sensor-/actuator-slots | - MV |
Number of channels per connector slot | - MV |
Type of branches for sensor-/actuator cables | - MV |
Number of poles sensor/actuator slots | - MV |
Nominal rated voltage | 48 Volt |
Pollution degree | 3 |
Operating voltage | 48, 48 Volt |
Max. current carrying capacity per I/O signal | - MV Ampere |
Max. current carrying capacity per socket | - MV Ampere |
Max. total current | - MV Ampere |
Diameter contact female | - MV Millimeter |
Material contact body | Brass |
Material of contact surface | Gold |
Material insulation body | Other |
Thread sleeves sensor/actuator slots | - MV |
With LED indication | No |
With potential separation | - MV |
Connection for NPN-sensors | - MV |
Fix cable version suitable for cable guide chain | - MV |
Material housing | - MV |
Colour housing | - MV |
Operation temperature | -50, 80 Degrees celsius |
Degree of protection (IP) | IP67 |
Explosion safety category for gas | - MV |
Explosion safety category for dust | - MV |
Width | - MV Millimeter |
Height | - MV Millimeter |
Length | - MV Millimeter |
Customs tarif #: | 85444290900 |
UNIT: | Piece |
GTIN | 4047101375374 |
